PTH05010WAH

PTH05010WAH

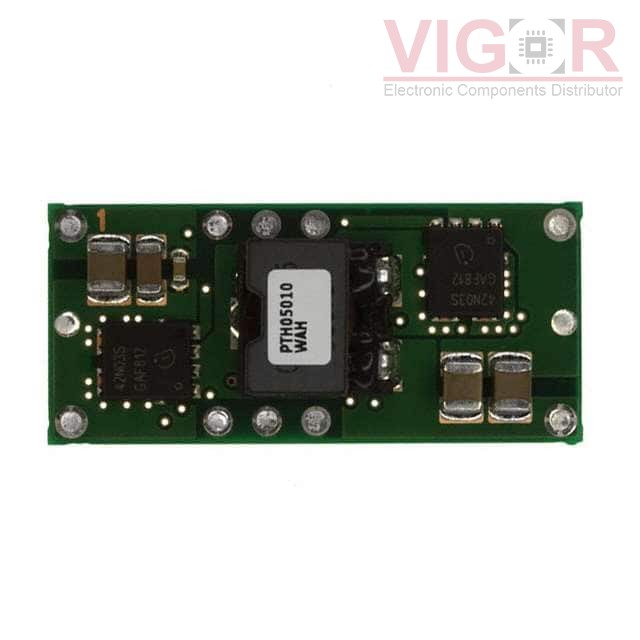

Image is for reference,
please contact us to get the real picture

Part No :

PTH05010WAH

Manufacturer
VIGOR
Description
PTH05010W 15 A, 5-V INPUT WIDE-O
Catalog
DC DC Converters
Shipped from
HK warehouse
Expected Shipping Date
Oct 05 - Oct 09 2025
DataSheet
PTH05010WAH PDF
Availability
628 pieces
Unit Price
$15.55000

Current price of PTH05010WAH is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PTH05010WAH Specifications
Type Description
Series:PTH05010W (54W)
Package:Bulk
Part Status:Active
Type:Non-Isolated PoL Module
Number of Outputs:1
Voltage - Input (Min):4.5V
Voltage - Input (Max):5.5V
Voltage - Output 1:0.8 ~ 3.6V
Voltage - Output 2:-
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):15A
Power (Watts):54 W
Voltage - Isolation:-
Applications:ITE (Commercial)
Features:Remote On/Off, OTP, SCP, UVLO
Operating Temperature:-40°C ~ 85°C
Efficiency:95%
Mounting Type:Through Hole
Package / Case:10-DIP Module
Size / Dimension:1.37" L x 0.62" W x 0.35" H (34.8mm x 15.7mm x 8.9mm)
Supplier Device Package:-
Control Features:-
Approval Agency:-
Standard Number:-
