0314020.MXP

Part No :: 0314020.MXP

Manufacturer: Wickmann / Littelfuse

VIGOR # :: 1905712

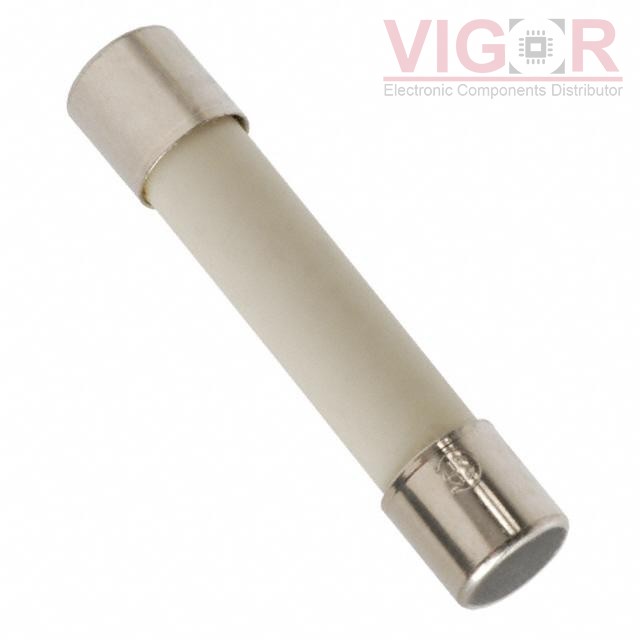

Description: FUSE CERM 20A 250VAC 125VDC 3AB

Catalog: Fuses

DataSheet: 0314020.MXP PDF

Country of origin: -

Date code: -

0314020.MXP Specifications

Type	Description
Series:	314
Package:	Bulk
Part Status:	Active
Mounting Type:	Holder
Fuse Type:	Cartridge, Ceramic
Current Rating (Amps):	20 A
Voltage Rating - AC:	250 V
Voltage Rating - DC:	125 V
Response Time:	Fast Blow
Package / Case:	3AB, 3AG, 1/4" x 1-1/4"
Breaking Capacity @ Rated Voltage:	200A AC, 10kA DC
Melting I²t:	631
Approval Agency:	CE, CSA, PSE, UL
Operating Temperature:	-55°C ~ 125°C
Color:	-
Size / Dimension:	0.250" Dia x 1.250" L (6.35mm x 31.75mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 242

Shipped from

HK warehouse

Expected Shipping Date

Jul 16 - Jul 20 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$1.5800~~	~~$1.58~~
5	~~$1.5281~~	~~$7.64~~
10	~~$1.4299~~	~~$14.30~~
50	~~$1.1836~~	~~$59.18~~
100	~~$0.9864~~	~~$98.64~~
250	~~$0.9617~~	~~$240.43~~
500	~~$0.8138~~	~~$406.88~~
1000	~~$0.7151~~	~~$715.12~~
5000	~~$0.6411~~	~~$3 205.70~~

Current price of 0314020.MXP is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
