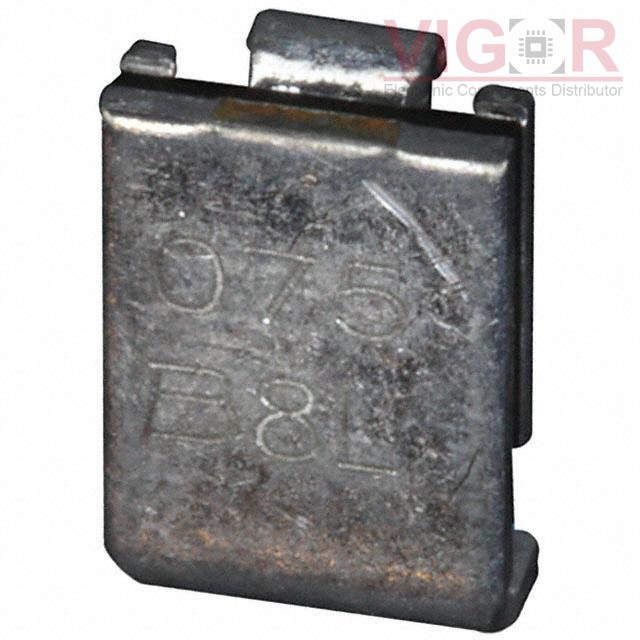

MF-SM100-2-99

Part No :: MF-SM100-2-99

Manufacturer: J.W. Miller / Bourns

VIGOR # :: 4505601

Description: PTC RESET FUSE 30V 1.1A 2SMD

Catalog: PTC Resettable Fuses

DataSheet: MF-SM100-2-99 PDF

Country of origin: -

Date code: -

MF-SM100-2-99 Specifications

Type	Description
Series:	Multifuse®, MF-SM
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Polymeric
Voltage - Max:	30V
Current - Max:	80 A
Current - Hold (Ih) (Max):	1.1 A
Current - Trip (It):	2.2 A
Time to Trip:	500 ms
Resistance - Initial (Ri) (Min):	120 mOhms
Resistance - Post Trip (R1) (Max):	480 mOhms
Resistance - 25°C (Typ):	-
Operating Temperature:	-40°C ~ 85°C
Ratings:	AEC-Q200
Mounting Type:	Surface Mount
Package / Case:	2-SMD
Size / Dimension:	0.287" L x 0.214" W (7.31mm x 5.44mm)
Height - Seated (Max):	-
Thickness (Max):	0.118" (3.00mm)
Lead Spacing:	-
