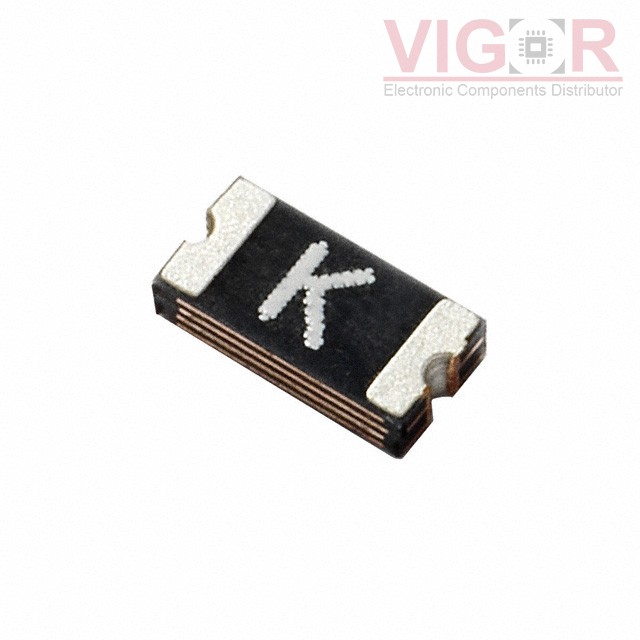

SMD1206P050TSA

Part No :: SMD1206P050TSA

Manufacturer: Wickmann / Littelfuse

VIGOR # :: 4506013

Description: PTC RESET FUSE 6V 500MA 1206

Catalog: PTC Resettable Fuses

DataSheet: SMD1206P050TSA PDF

Country of origin: -

Date code: -

SMD1206P050TSA Specifications

Type	Description
Series:	POLY-FUSE®, SMD1206
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Polymeric
Voltage - Max:	6V
Current - Max:	40 A
Current - Hold (Ih) (Max):	500 mA
Current - Trip (It):	1 A
Time to Trip:	100 ms
Resistance - Initial (Ri) (Min):	150 mOhms
Resistance - Post Trip (R1) (Max):	700 mOhms
Resistance - 25°C (Typ):	-
Operating Temperature:	-40°C ~ 85°C
Ratings:	-
Mounting Type:	Surface Mount
Package / Case:	1206 (3216 Metric), Concave
Size / Dimension:	0.128" L x 0.065" W (3.25mm x 1.65mm)
Height - Seated (Max):	-
Thickness (Max):	0.024" (0.60mm)
Lead Spacing:	-
