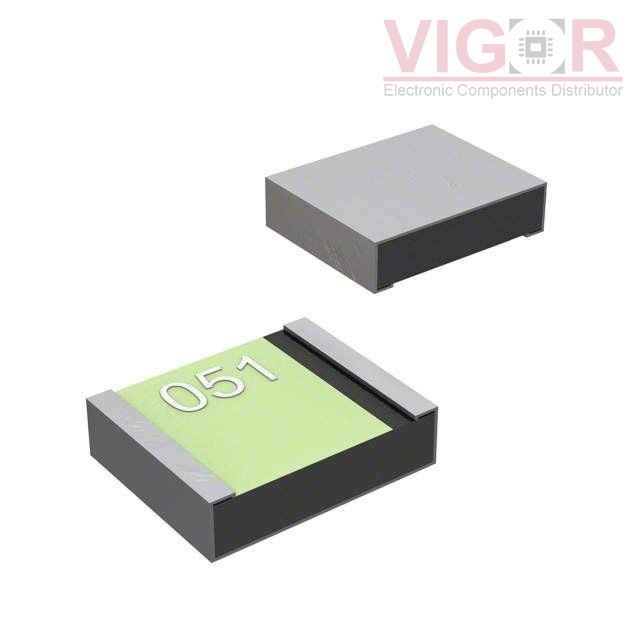

MF-USMD020-2

Part No :: MF-USMD020-2

Manufacturer: J.W. Miller / Bourns

VIGOR # :: 4506015

Description: PTC RESET FUSE 30V 200MA 1210

Catalog: PTC Resettable Fuses

DataSheet: MF-USMD020-2 PDF

Country of origin: -

Date code: -

MF-USMD020-2 Specifications

Type	Description
Series:	Multifuse®, MF-USMD
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Polymeric
Voltage - Max:	30V
Current - Max:	10 A
Current - Hold (Ih) (Max):	200 mA
Current - Trip (It):	400 mA
Time to Trip:	20 ms
Resistance - Initial (Ri) (Min):	400 mOhms
Resistance - Post Trip (R1) (Max):	5 Ohms
Resistance - 25°C (Typ):	-
Operating Temperature:	-40°C ~ 85°C
Ratings:	-
Mounting Type:	Surface Mount
Package / Case:	1210 (3225 Metric)
Size / Dimension:	0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max):	-
Thickness (Max):	0.033" (0.85mm)
Lead Spacing:	-
