SESD0201X1BN-0015-096

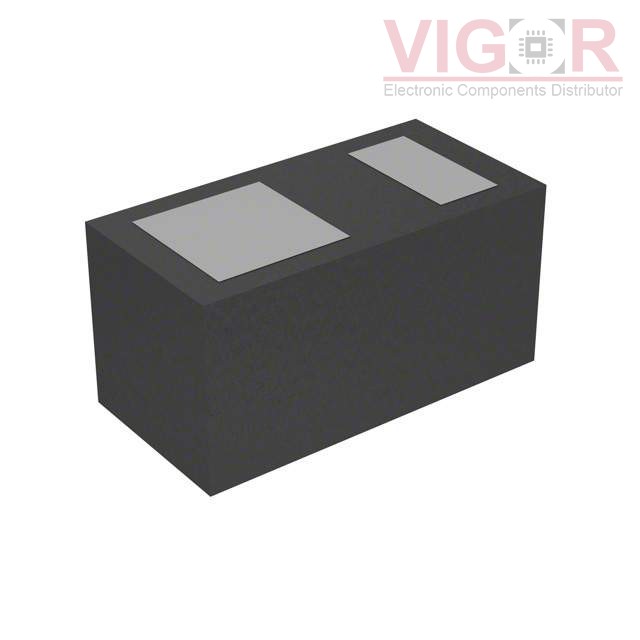

Image is for reference,
please contact us to get the real picture

Part No :: SESD0201X1BN-0015-096

Manufacturer: Wickmann / Littelfuse

Description: TVS DIODE 7V 14V 2XDFN

Catalog: TVS - Diodes

DataSheet: SESD0201X1BN-0015-096 PDF

Availability: 225000 pieces

Unit Price: ~~$0.22795~~

Current price of SESD0201X1BN-0015-096 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SESD0201X1BN-0015-096 Specifications

Type	Description
Series:	Automotive, AEC-Q101, SESD, SPA®
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Zener
Unidirectional Channels:	-
Bidirectional Channels:	1
Voltage - Reverse Standoff (Typ):	7V (Max)
Voltage - Breakdown (Min):	9.6V (Typ)
Voltage - Clamping (Max) @ Ipp:	14V (Typ)
Current - Peak Pulse (10/1000µs):	2.5A (8/20µs)
Power - Peak Pulse:	-
Power Line Protection:	No
Applications:	Automotive, HDMI
Capacitance @ Frequency:	0.15pF @ 3GHz
Operating Temperature:	-55°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Package / Case:	0201 (0603 Metric)
Supplier Device Package:	0201/DFN0603
