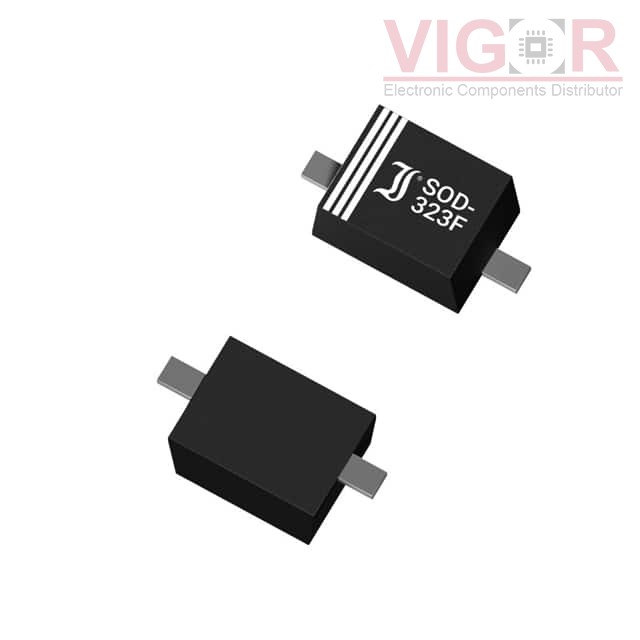

ESD3B12WS

Part No :: ESD3B12WS

Manufacturer: Diotec Semiconductor

Description: ESD SOD-323 12V 350W UNI

Catalog: TVS - Diodes

DataSheet: ESD3B12WS PDF

Availability: 0 pieces

Current price of ESD3B12WS is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ESD3B12WS Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Zener
Unidirectional Channels:	-
Bidirectional Channels:	1
Voltage - Reverse Standoff (Typ):	12V
Voltage - Breakdown (Min):	13.3V
Voltage - Clamping (Max) @ Ipp:	24V
Current - Peak Pulse (10/1000µs):	15A (8/20µs)
Power - Peak Pulse:	350W
Power Line Protection:	No
Applications:	General Purpose
Capacitance @ Frequency:	100pF @ 1MHz
Operating Temperature:	-50°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	SC-90, SOD-323F
Supplier Device Package:	SOD-323
