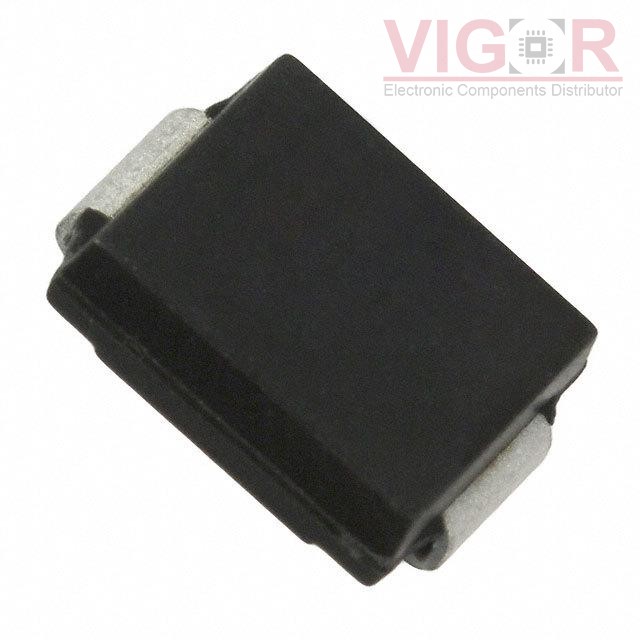

SMLJ85A

Part No :: SMLJ85A

Manufacturer: J.W. Miller / Bourns

Description: TVS DIODE 85V 137V SMC

Catalog: TVS - Diodes

DataSheet: SMLJ85A PDF

Availability: 4596 pieces

Current price of SMLJ85A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SMLJ85A Specifications

Type	Description
Series:	SMLJ
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Zener
Unidirectional Channels:	1
Bidirectional Channels:	-
Voltage - Reverse Standoff (Typ):	85V
Voltage - Breakdown (Min):	94.4V
Voltage - Clamping (Max) @ Ipp:	137V
Current - Peak Pulse (10/1000µs):	20.8A
Power - Peak Pulse:	3000W (3kW)
Power Line Protection:	No
Applications:	General Purpose
Capacitance @ Frequency:	-
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	DO-214AB, SMC
Supplier Device Package:	SMC (DO-214AB)

Please confirm the specifications of the products when ordering.
