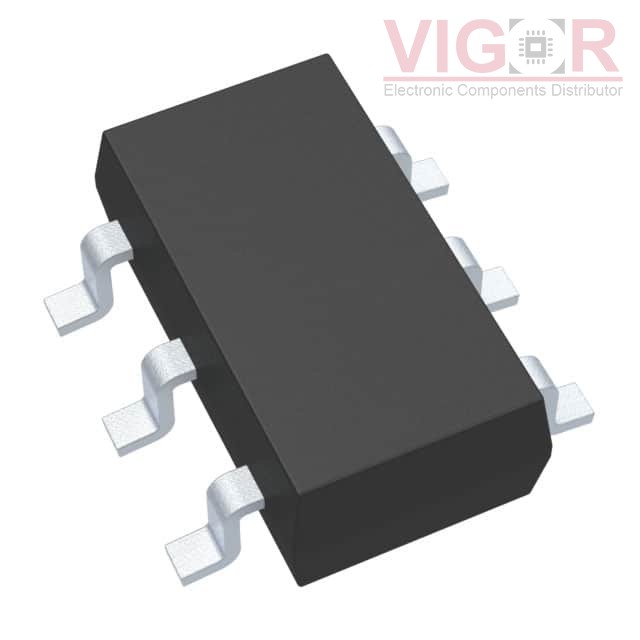

RCLAMP0504S.TCT

Part No :: RCLAMP0504S.TCT

Manufacturer: Semtech

Description: TVS DIODE 5V 25V SOT23-6

Catalog: TVS - Diodes

DataSheet: RCLAMP0504S.TCT PDF

Availability: 37178 pieces

Current price of RCLAMP0504S.TCT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

RCLAMP0504S.TCT Specifications

Type	Description
Series:	RailClamp®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Steering (Rail to Rail)
Unidirectional Channels:	4
Bidirectional Channels:	-
Voltage - Reverse Standoff (Typ):	5V
Voltage - Breakdown (Min):	6V
Voltage - Clamping (Max) @ Ipp:	25V
Current - Peak Pulse (10/1000µs):	6A (8/20µs)
Power - Peak Pulse:	150W
Power Line Protection:	Yes
Applications:	Ethernet, USB OTG
Capacitance @ Frequency:	3pF @ 1MHz
Operating Temperature:	-55°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	SOT-23-6
Supplier Device Package:	SOT-23-6
