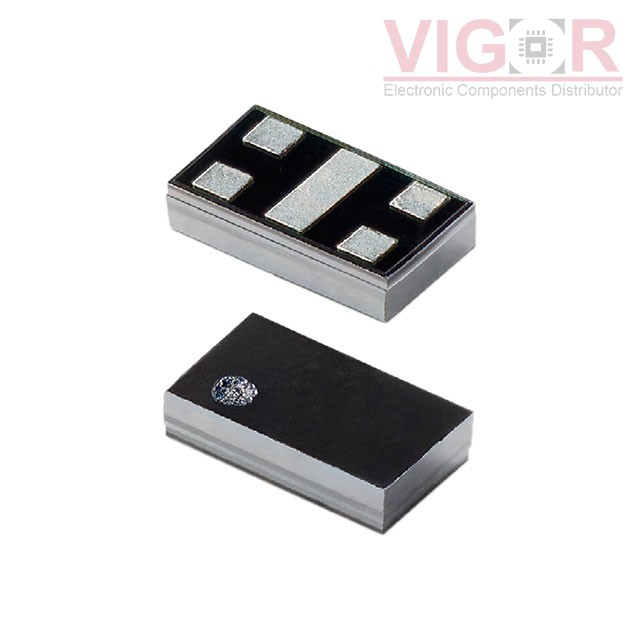

SP1015-04WTG

Part No :: SP1015-04WTG

Manufacturer: Wickmann / Littelfuse

Description: TVS DIODE 5V 12V 4FLIPCHIP

Catalog: TVS - Diodes

DataSheet: SP1015-04WTG PDF

Availability: 0 pieces

Current price of SP1015-04WTG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SP1015-04WTG Specifications

Type	Description
Series:	SP1015, SPA®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Zener
Unidirectional Channels:	-
Bidirectional Channels:	4
Voltage - Reverse Standoff (Typ):	5V (Max)
Voltage - Breakdown (Min):	5.5V
Voltage - Clamping (Max) @ Ipp:	12V
Current - Peak Pulse (10/1000µs):	2A (8/20µs)
Power - Peak Pulse:	-
Power Line Protection:	No
Applications:	General Purpose
Capacitance @ Frequency:	5pF @ 1MHz
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	4-XFDFN Exposed Pad
Supplier Device Package:	4-FlipChip (0.95 x 0.55)
