SMBJ22HE3/52

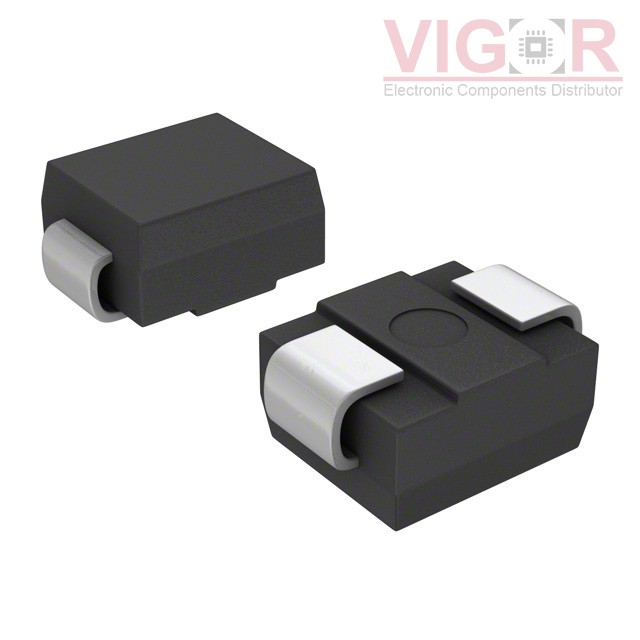

Part No :: SMBJ22HE3/52

Manufacturer: Vishay General Semiconductor – Diodes Division

VIGOR # :: 4486674

Description: TVS DIODE 22V 39.4V DO214AA

Catalog: TVS - Diodes

DataSheet: SMBJ22HE3/52 PDF

Country of origin: -

Date code: -

SMBJ22HE3/52 Specifications

Type	Description
Series:	Automotive, AEC-Q101, TransZorb®
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Zener
Unidirectional Channels:	1
Bidirectional Channels:	-
Voltage - Reverse Standoff (Typ):	22V
Voltage - Breakdown (Min):	24.4V
Voltage - Clamping (Max) @ Ipp:	39.4V
Current - Peak Pulse (10/1000µs):	15.2A
Power - Peak Pulse:	600W
Power Line Protection:	No
Applications:	Automotive
Capacitance @ Frequency:	-
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	DO-214AA, SMB
Supplier Device Package:	DO-214AA (SMBJ)
