SMBG13CHE3/5B

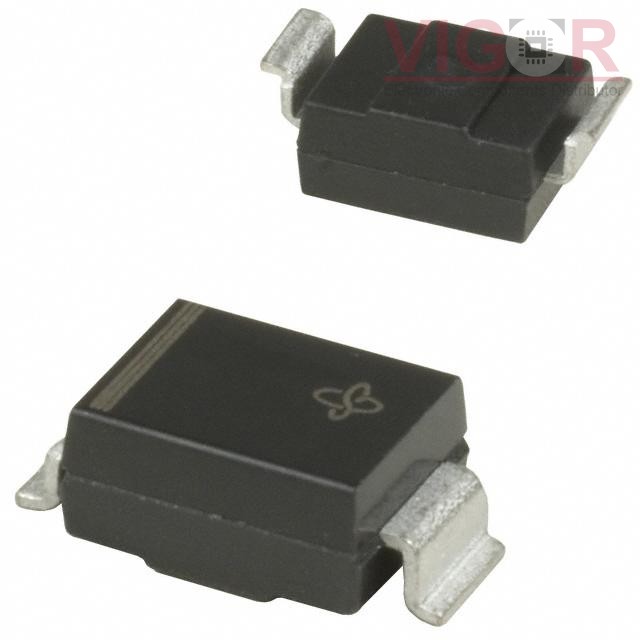

Part No :: SMBG13CHE3/5B

Manufacturer: Vishay General Semiconductor – Diodes Division

VIGOR # :: 4487622

Description: TVS DIODE 13V 23.8V DO215AA

Catalog: TVS - Diodes

DataSheet: SMBG13CHE3/5B PDF

Country of origin: -

Date code: -

SMBG13CHE3/5B Specifications

Type	Description
Series:	Automotive, AEC-Q101, TransZorb®
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Zener
Unidirectional Channels:	-
Bidirectional Channels:	1
Voltage - Reverse Standoff (Typ):	13V
Voltage - Breakdown (Min):	14.4V
Voltage - Clamping (Max) @ Ipp:	23.8V
Current - Peak Pulse (10/1000µs):	25.2A
Power - Peak Pulse:	600W
Power Line Protection:	No
Applications:	Automotive
Capacitance @ Frequency:	-
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	DO-215AA, SMB Gull Wing
Supplier Device Package:	DO-215AA (SMBG)
