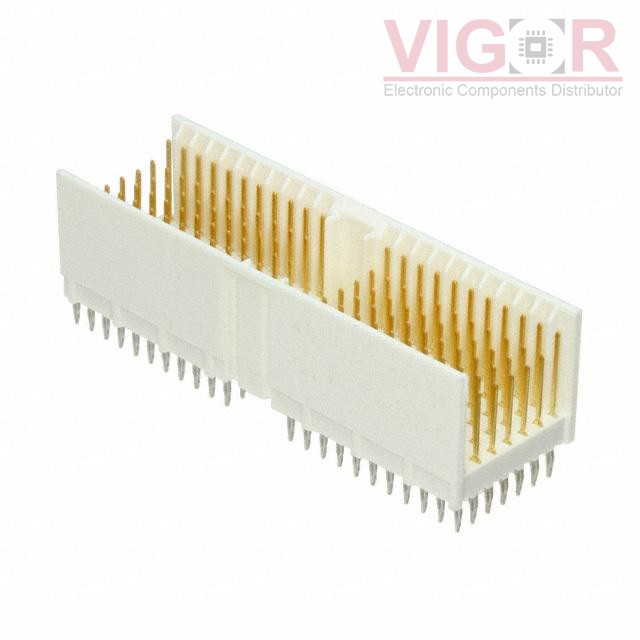

HM2P07PDG1A1N9LF

Part No :: HM2P07PDG1A1N9LF

Manufacturer: Storage & Server IO (Amphenol ICC)

VIGOR # :: 3265543

Description: CONN HEADER 154POS 2MM PRESS-FIT

Catalog: Backplane Connectors - Hard Metric, Standard

DataSheet: HM2P07PDG1A1N9LF PDF

Current price of HM2P07PDG1A1N9LF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

HM2P07PDG1A1N9LF Specifications

Type	Description
Series:	Millipacs®
Package:	Tray
Part Status:	Active
Connector Type:	Header, Male Pins
Connector Style:	A 22
Number of Positions:	154 (110 + 44 Ground)
Number of Positions Loaded:	All
Pitch:	0.079" (2.00mm)
Number of Rows:	5 + 2
Mounting Type:	Through Hole
Termination:	Press-Fit
Connector Usage:	-
Contact Finish:	Gold
Contact Finish Thickness:	Flash

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1152

Shipped from

HK warehouse

Expected Shipping Date

Dec 14 - Dec 18 2025

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	$4.45000	$4.45
10	$4.26661	$42.6661
25	$3.91087	$97.77175
50	$3.73287	$186.6435
100	$3.55512	$355.512
288	$3.11072	$895.88736
576	$3.02186	$1740.59136
1152	$2.57746	$2969.23392
2592	$2.39970	$6220.0224
