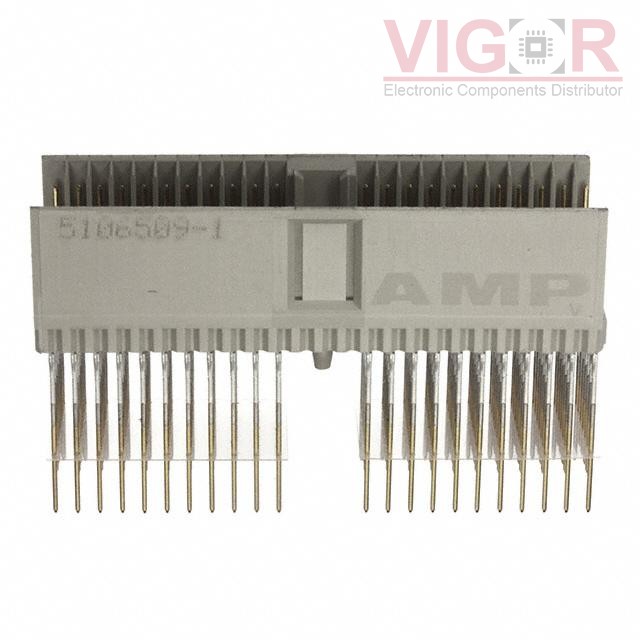

5106509-1

Part No :: 5106509-1

Manufacturer: TE Connectivity AMP Connectors

VIGOR # :: 3265566

Description: CONN HEADER 154POS 2MM PRESS-FIT

Catalog: Backplane Connectors - Hard Metric, Standard

DataSheet: 5106509-1 PDF

Current price of 5106509-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

5106509-1 Specifications

Type	Description
Series:	Z-PACK
Package:	Tube
Part Status:	Active
Connector Type:	Header, Male Pins
Connector Style:	A 22
Number of Positions:	154 (110 + 44 Ground)
Number of Positions Loaded:	All
Pitch:	0.079" (2.00mm)
Number of Rows:	5 + 2
Mounting Type:	Through Hole
Termination:	Press-Fit
Connector Usage:	Backplane
Contact Finish:	Gold
Contact Finish Thickness:	30.0µin (0.76µm)

Please confirm the specifications of the products when ordering.
