3-5646547-0

Part No :: 3-5646547-0

Manufacturer: TE Connectivity AMP Connectors

VIGOR # :: 3265619

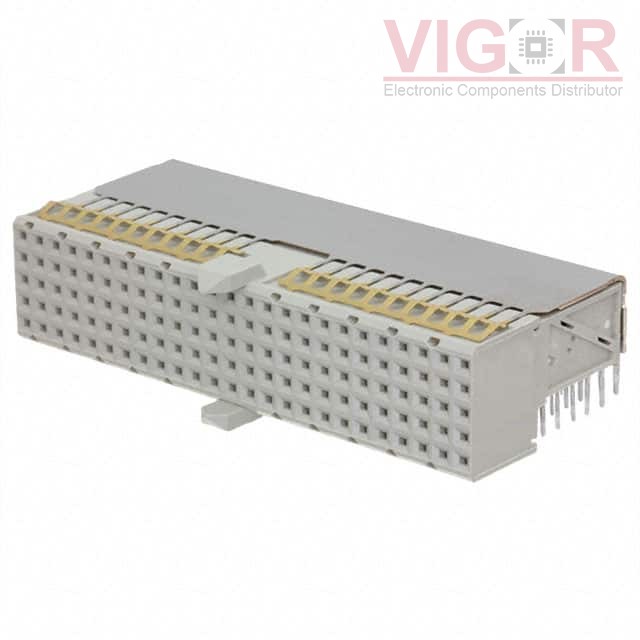

Description: CONN RECEPT 138POS 2MM PRESS-FIT

Catalog: Backplane Connectors - Hard Metric, Standard

DataSheet: 3-5646547-0 PDF

Current price of 3-5646547-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

3-5646547-0 Specifications

Type	Description
Series:	Z-PACK
Package:	Tube
Part Status:	Active
Connector Type:	Receptacle, Female Sockets
Connector Style:	AB 25
Number of Positions:	138 (125 + 13 Ground)
Number of Positions Loaded:	All
Pitch:	0.079" (2.00mm)
Number of Rows:	5 + 1
Mounting Type:	Through Hole, Right Angle
Termination:	Press-Fit
Connector Usage:	-
Contact Finish:	Gold
Contact Finish Thickness:	30.0µin (0.76µm)

Please confirm the specifications of the products when ordering.
