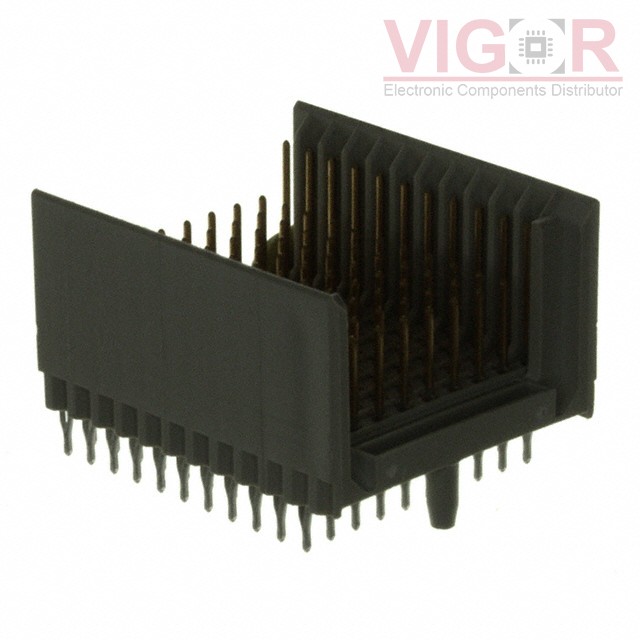

1-5646513-9

Part No :: 1-5646513-9

Manufacturer: TE Connectivity AMP Connectors

VIGOR # :: 3265679

Description: CONN HEADER 110POS 2MM PRESS-FIT

Catalog: Backplane Connectors - Hard Metric, Standard

DataSheet: 1-5646513-9 PDF

Current price of 1-5646513-9 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

1-5646513-9 Specifications

Type	Description
Series:	Z-PACK
Package:	Tube
Part Status:	Active
Connector Type:	Header, Male Pins
Connector Style:	F 11
Number of Positions:	110 (88 + 22 Ground)
Number of Positions Loaded:	All
Pitch:	0.079" (2.00mm)
Number of Rows:	8 + 2
Mounting Type:	Through Hole
Termination:	Press-Fit
Connector Usage:	Backplane
Contact Finish:	Gold
Contact Finish Thickness:	30.0µin (0.76µm)

Please confirm the specifications of the products when ordering.
