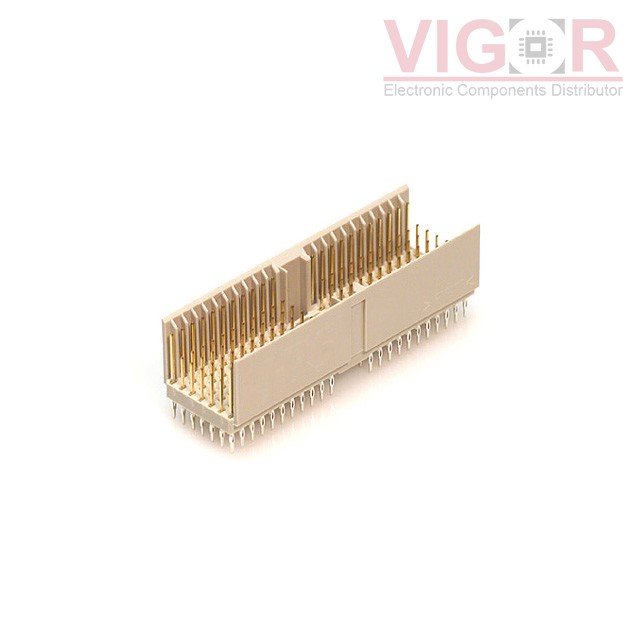

PCN21B-110PA-2PF-G

Part No :: PCN21B-110PA-2PF-G

Manufacturer: Hirose

VIGOR # :: 3265778

Description: CONN HEADER 154POS 2MM PRESS-FIT

Catalog: Backplane Connectors - Hard Metric, Standard

DataSheet: PCN21B-110PA-2PF-G PDF

Current price of PCN21B-110PA-2PF-G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PCN21B-110PA-2PF-G Specifications

Type	Description
Series:	PCN21
Package:	Tray
Part Status:	Obsolete
Connector Type:	Header, Male Pins
Connector Style:	A 22
Number of Positions:	154 (110 + 44 Ground)
Number of Positions Loaded:	All
Pitch:	0.079" (2.00mm)
Number of Rows:	5 + 2
Mounting Type:	Through Hole
Termination:	Press-Fit
Connector Usage:	Backplane
Contact Finish:	Gold
Contact Finish Thickness:	31.5µin (0.80µm)

Please confirm the specifications of the products when ordering.
