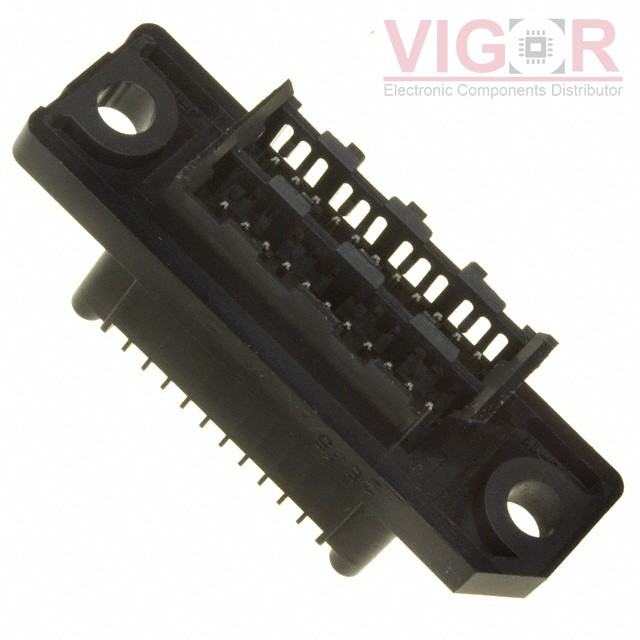

5-292178-1

Part No :: 5-292178-1

Manufacturer: TE Connectivity AMP Connectors

Description: CONN BLNDMATE MIN-DRAWER 22P PNL

Catalog: Backplane Connectors - Specialized

DataSheet: 5-292178-1 PDF

Availability: 0 pieces

Current price of 5-292178-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

5-292178-1 Specifications

Type	Description
Series:	Mini CT
Package:	Bulk
Part Status:	Active
Connector Usage:	-
Connector Type:	Blindmate, Fixed, Non-Gendered
Connector Style:	Mini-Drawer
Number of Positions:	22
Number of Positions Loaded:	All
Pitch:	0.079" (2.00mm)
Number of Rows:	2
Number of Columns:	-
Mounting Type:	Panel Mount
Termination:	Solder
Contact Layout, Typical:	-
Features:	Board Guide
Contact Finish:	Gold
Contact Finish Thickness:	-
Color:	Black
