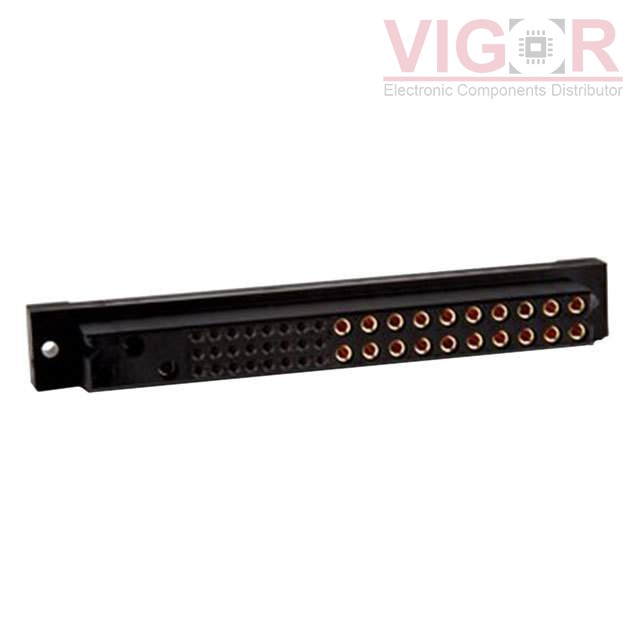

3P02-1001-DA

Part No :: 3P02-1001-DA

Manufacturer: 3M

VIGOR # :: 4711404

Description: CONN RCPT COMPACT PCI 38POS PCB

Catalog: Backplane Connectors - Specialized

DataSheet: 3P02-1001-DA PDF

Current price of 3P02-1001-DA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

3P02-1001-DA Specifications

Type	Description
Series:	3P02
Package:	Tube
Part Status:	Obsolete
Connector Usage:	Backplane
Connector Type:	Receptacle, Female Sockets
Connector Style:	CompactPCI®
Number of Positions:	38
Number of Positions Loaded:	All
Pitch:	-
Number of Rows:	-
Number of Columns:	-
Mounting Type:	Through Hole
Termination:	Press-Fit
Contact Layout, Typical:	15 Single Signal, 23 Power
Features:	-
Contact Finish:	Gold
Contact Finish Thickness:	3.00µin (0.076µm)
Color:	-

Please confirm the specifications of the products when ordering.
