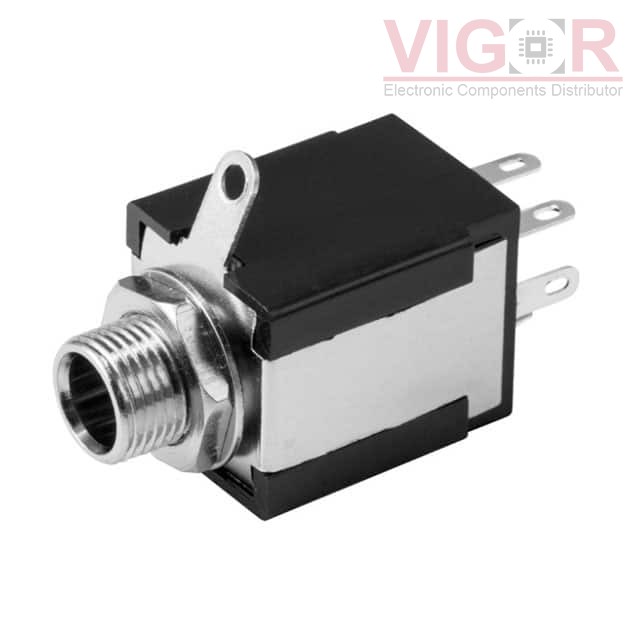

SJ-63023H

Part No :: SJ-63023H

Manufacturer: CUI Devices

VIGOR # :: 3278868

Description: AUDIO JACK, 6.35 MM, VERTICAL, 3

Catalog: Barrel - Audio Connectors

DataSheet: SJ-63023H PDF

Country of origin: -

Date code: -

SJ-63023H Specifications

Type	Description
Series:	SJ
Package:	Bag
Part Status:	Active
Connector Type:	Phone Jack
Gender:	Female
Signal Lines:	5 Conductor (TRRRS)
Industry Recognized Mating Diameter:	6.35mm (0.250", 1/4") - Headphone
Actual Diameter:	0.252" (6.40mm)
Number of Positions/Contacts:	5 Conductors, 7 Contacts
Internal Switch(s):	Two Switches
Mounting Type:	Panel Mount
Termination:	Solder Eyelet(s)
Shielding:	Unshielded
Features:	Cover, Mounting Hardware, Thread Lock
Insulation Color:	-
Operating Temperature:	-25°C ~ 70°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 974

Shipped from

HK warehouse

Expected Shipping Date

Dec 30 - Jan 03 2025

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$2.55~~	~~$2.55~~

Current price of SJ-63023H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

SJ-435107

CONN JACK 4COND 3.5MM R/A

50-00423

CONN PLUG MONO 6.35MM R/A 2COND

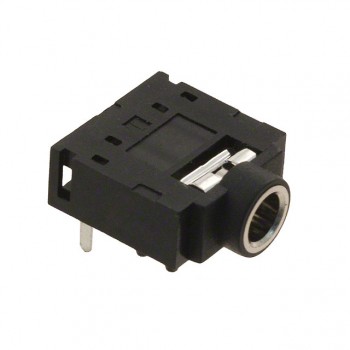

SJ1-3523NG
