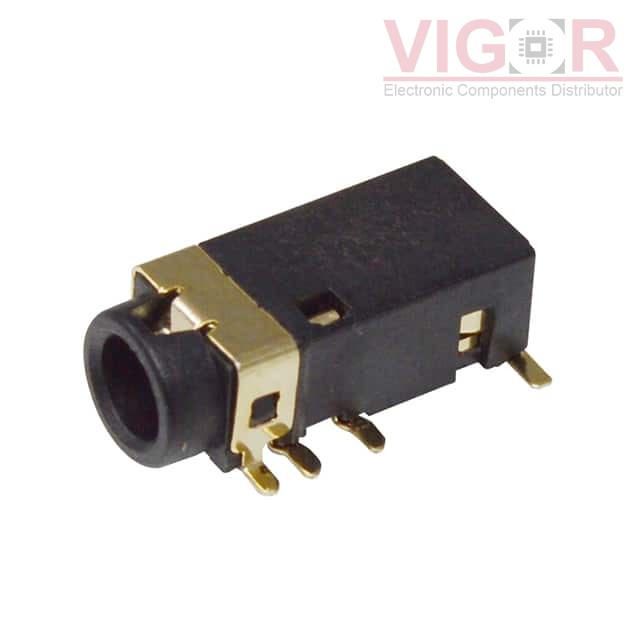

STX-3542-5N-G-TR

Image is for reference,
please contact us to get the real picture

Part No :: STX-3542-5N-G-TR

Manufacturer: Kycon

Description: CONN JACK STEREO 5COND SMD

Catalog: Barrel - Audio Connectors

DataSheet: STX-3542-5N-G-TR PDF

Availability: 1102 pieces

Unit Price: ~~$1.37000~~

Current price of STX-3542-5N-G-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

STX-3542-5N-G-TR Specifications

Type	Description
Series:	STX-3542
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Phone Jack
Gender:	Female
Signal Lines:	5 Conductor (TRRRS)
Industry Recognized Mating Diameter:	3.50mm (0.141", 1/8", Mini Plug) - Headphone
Actual Diameter:	0.142" (3.60mm)
Number of Positions/Contacts:	5 Conductors, 5 Contacts
Internal Switch(s):	Does Not Contain Switch
Mounting Type:	Surface Mount, Right Angle
Termination:	Solder
Shielding:	Unshielded
Features:	-
Insulation Color:	-
Operating Temperature:	-25°C ~ 70°C
