SJ2-2524C-SMT-TR

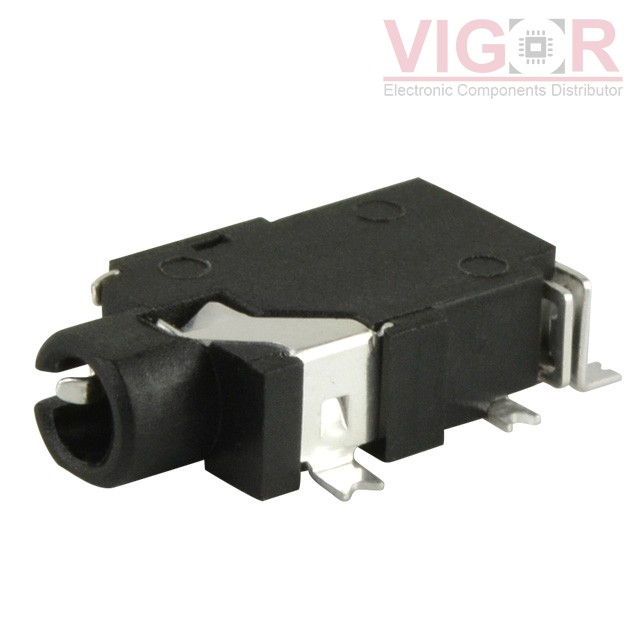

Image is for reference,
please contact us to get the real picture

Part No :: SJ2-2524C-SMT-TR

Manufacturer: CUI Devices

Description: AUDIO JACK, 2.5 MM, RT, 4 CONDUC

Catalog: Barrel - Audio Connectors

DataSheet: SJ2-2524C-SMT-TR PDF

Availability: 1199 pieces

Unit Price: ~~$1.20000~~

Current price of SJ2-2524C-SMT-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SJ2-2524C-SMT-TR Specifications

Type	Description
Series:	SJ2
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Phone Jack
Gender:	Female
Signal Lines:	Stereo (4 Conductor, TRRS)
Industry Recognized Mating Diameter:	2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone
Actual Diameter:	0.102" (2.60mm)
Number of Positions/Contacts:	4 Conductors, 5 Contacts
Internal Switch(s):	Single Switch
Mounting Type:	Surface Mount, Right Angle
Termination:	Solder
Shielding:	Unshielded
Features:	Board Guide
Insulation Color:	-
Operating Temperature:	-25°C ~ 85°C
