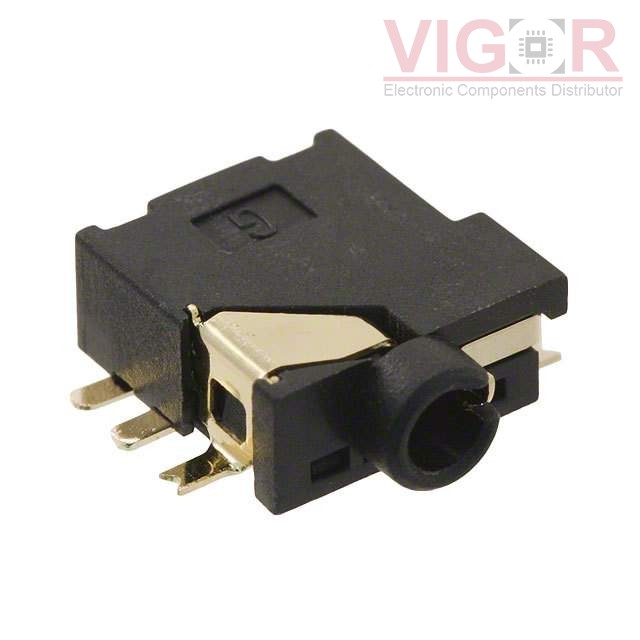

SJ1-42515RS-SMT-TR

Image is for reference,
please contact us to get the real picture

Part No :: SJ1-42515RS-SMT-TR

Manufacturer: CUI Devices

Description: CONN JACK 4COND 2.5MM SMD R/A

Catalog: Barrel - Audio Connectors

DataSheet: SJ1-42515RS-SMT-TR PDF

Availability: 308 pieces

Unit Price: ~~$1.32000~~

Current price of SJ1-42515RS-SMT-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SJ1-42515RS-SMT-TR Specifications

Type	Description
Series:	SJ1
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Phone Jack
Gender:	Female
Signal Lines:	Stereo (4 Conductor, TRRS)
Industry Recognized Mating Diameter:	2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone
Actual Diameter:	0.102" (2.60mm)
Number of Positions/Contacts:	4 Conductors, 5 Contacts
Internal Switch(s):	Single Switch
Mounting Type:	Surface Mount, Right Angle
Termination:	Solder
Shielding:	Unshielded
Features:	Board Guide
Insulation Color:	-
Operating Temperature:	-25°C ~ 85°C
