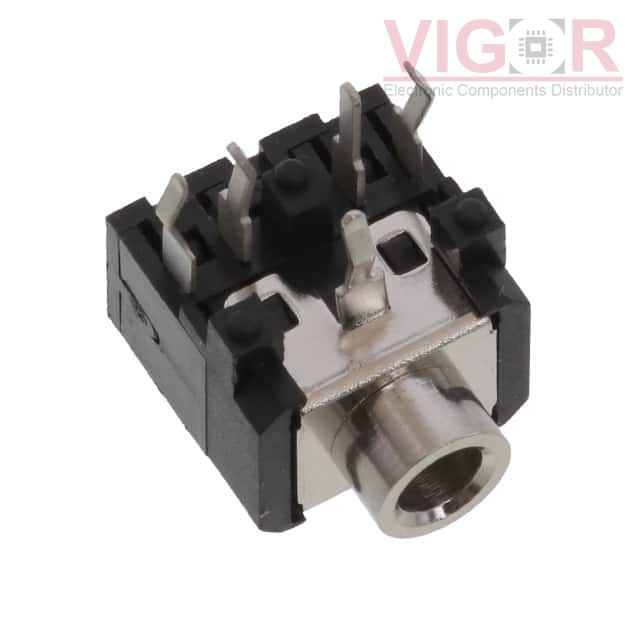

STX-3200-5NB

Image is for reference,
please contact us to get the real picture

Part No :: STX-3200-5NB

Manufacturer: Kycon

Description: STEREO JACK NO THREAD SHIELD 5P,

Catalog: Barrel - Audio Connectors

DataSheet: STX-3200-5NB PDF

Availability: 4245 pieces

Unit Price: ~~$1.14000~~

Current price of STX-3200-5NB is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

STX-3200-5NB Specifications

Type	Description
Series:	STX-3200
Package:	Bulk
Part Status:	Active
Connector Type:	Phone Jack
Gender:	Female
Signal Lines:	Stereo (3 Conductor, TRS)
Industry Recognized Mating Diameter:	3.50mm (0.141", 1/8", Mini Plug) - Headphone
Actual Diameter:	0.142" (3.60mm)
Number of Positions/Contacts:	3 Conductors, 5 Contacts
Internal Switch(s):	Two Switches
Mounting Type:	Through Hole, Right Angle
Termination:	Kinked Pin
Shielding:	Unshielded
Features:	Board Guide
Insulation Color:	-
Operating Temperature:	-25°C ~ 100°C
