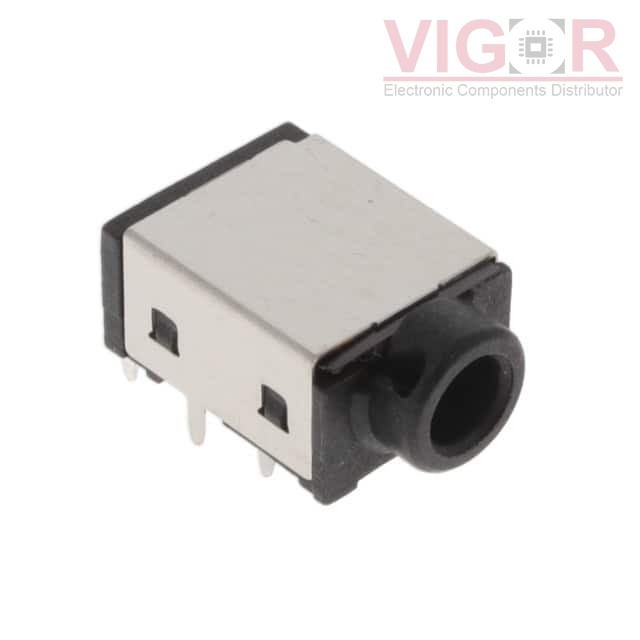

ASJ-192-Y-T/R

Image is for reference,
please contact us to get the real picture

Part No :: ASJ-192-Y-T/R

Manufacturer: Adam Tech

Description: AUDIO JACK

Catalog: Barrel - Audio Connectors

DataSheet: ASJ-192-Y-T/R PDF

Availability: 1289 pieces

Unit Price: ~~$1.38000~~

Current price of ASJ-192-Y-T/R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ASJ-192-Y-T/R Specifications

Type	Description
Series:	ASJ
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Phone Jack
Gender:	Female
Signal Lines:	6 Conductor
Industry Recognized Mating Diameter:	3.50mm (0.141", 1/8", Mini Plug) - Headphone
Actual Diameter:	0.142" (3.60mm)
Number of Positions/Contacts:	5 Conductors, 6 Contacts
Internal Switch(s):	Does Not Contain Switch
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Shielding:	Unshielded
Features:	Board Guide
Insulation Color:	-
Operating Temperature:	-20°C ~ 70°C
