694108402002

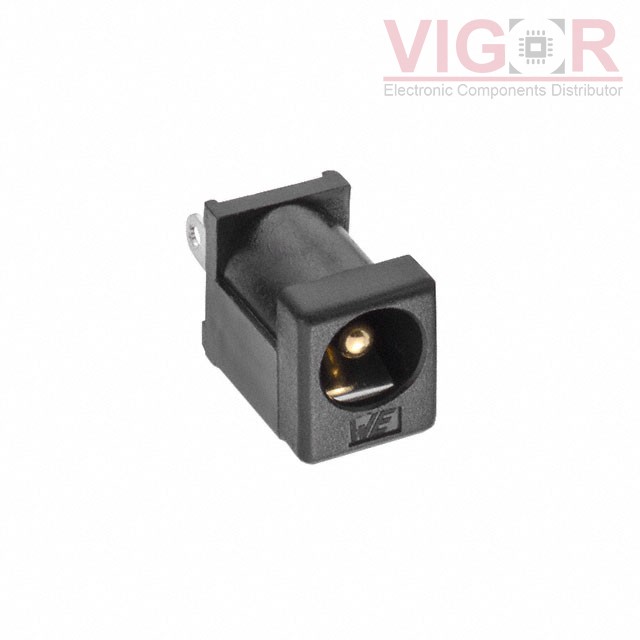

Product image
Product thumb
Part No :

694108402002

Manufacturer
Würth Elektronik Midcom
VIGOR # :

3279774

Description
CONN PWR JACK 2.5X5.5MM SOLDER
Catalog
Barrel - Power Connectors
DataSheet
694108402002 PDF
Country of origin
-
Date code
-
ads
694108402002 Specifications
Type Description
Series:WR-DC
Package:Bulk
Part Status:Active
Connector Type:Jack
Gender:Male
Industry Recognized Mating Diameter:2.50mm ID (0.098"), 5.50mm OD (0.217")
Actual Diameter:0.101" (2.55mm ID), 0.252" (6.40mm OD)
Number of Positions/Contacts:2 Conductors, 3 Contacts
Internal Switch(s):Single Switch, Normally Closed
Mounting Type:Through Hole
Mounting Feature:-
Termination:Solder
Shielding:Unshielded
Features:-
Insulation Color:-
Voltage - Rated:20VDC
Current Rating (Amps):3 A
Mating Length/Depth:0.354" (9.00mm)
Ingress Protection:-
Material Flammability Rating:UL94 V-0
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 2267
Shipped from
HK warehouse
Expected Shipping Date
Dec 30 - Jan 03 2025
Pricing(USD)
Quantity Unit Price Ext. Price
1 $1.14 $1.14
10 $1.09 $10.88
50 $0.98 $48.86
100 $0.90 $90.39
500 $0.79 $396.86
1000 $0.68 $682.58

Current price of 694108402002 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
