PJ-072C-SMT-TR

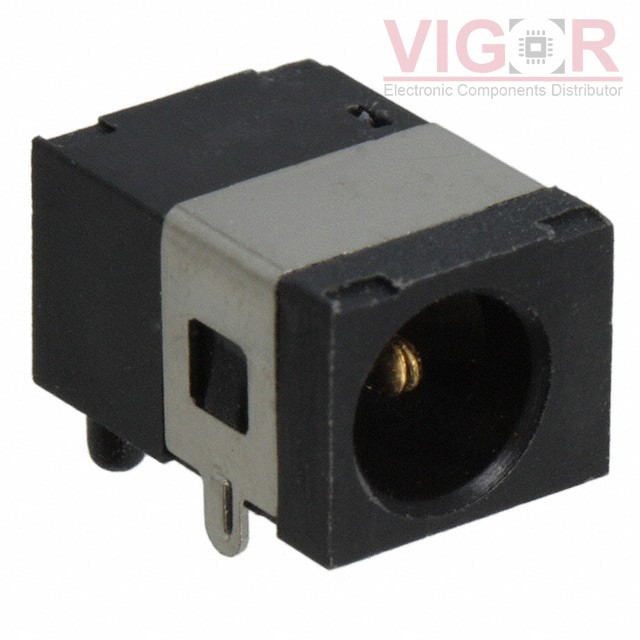

Image is for reference,
please contact us to get the real picture

Part No :: PJ-072C-SMT-TR

Manufacturer: CUI Devices

Description: CONN PWR JACK 1X3.4MM SOLDER

Catalog: Barrel - Power Connectors

DataSheet: PJ-072C-SMT-TR PDF

Availability: 363 pieces

Unit Price: ~~$0.97000~~

Current price of PJ-072C-SMT-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PJ-072C-SMT-TR Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Jack
Gender:	Male
Industry Recognized Mating Diameter:	1.00mm ID (0.039"), 3.40mm OD (0.134")
Actual Diameter:	0.039" (1.00mm ID), 0.142" (3.60mm OD)
Number of Positions/Contacts:	2 Conductors, 2 Contacts
Internal Switch(s):	Does Not Contain Switch
Mounting Type:	Surface Mount, Right Angle
Mounting Feature:	-
Termination:	Solder
Shielding:	Shielded
Features:	Board Guide
Insulation Color:	-
Voltage - Rated:	24VDC
Current Rating (Amps):	2 A
Mating Length/Depth:	0.236" (6.00mm)
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
