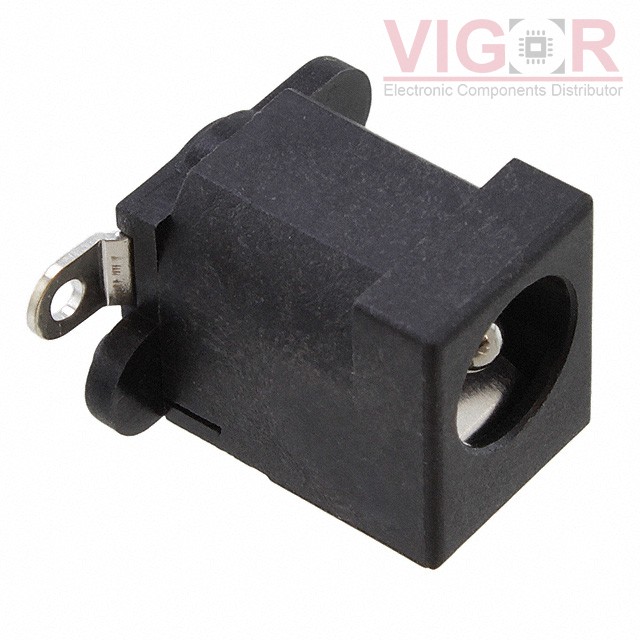

PJ-070BH-SMT-TR

Part No :: PJ-070BH-SMT-TR

Manufacturer: CUI Devices

Description: CONN PWR JACK 2.5X5.5MM SOLDER

Catalog: Barrel - Power Connectors

DataSheet: PJ-070BH-SMT-TR PDF

Availability: 745 pieces

Unit Price: ~~$1.47000~~

Current price of PJ-070BH-SMT-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PJ-070BH-SMT-TR Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Jack
Gender:	Male
Industry Recognized Mating Diameter:	2.50mm ID (0.098"), 5.50mm OD (0.217")
Actual Diameter:	0.098" (2.50mm ID), 0.248" (6.30mm OD)
Number of Positions/Contacts:	2 Conductors, 3 Contacts
Internal Switch(s):	Single Switch, Normally Closed
Mounting Type:	Surface Mount
Mounting Feature:	-
Termination:	Solder
Shielding:	Unshielded
Features:	-
Insulation Color:	-
Voltage - Rated:	24VDC
Current Rating (Amps):	5 A
Mating Length/Depth:	0.350" (8.90mm)
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
