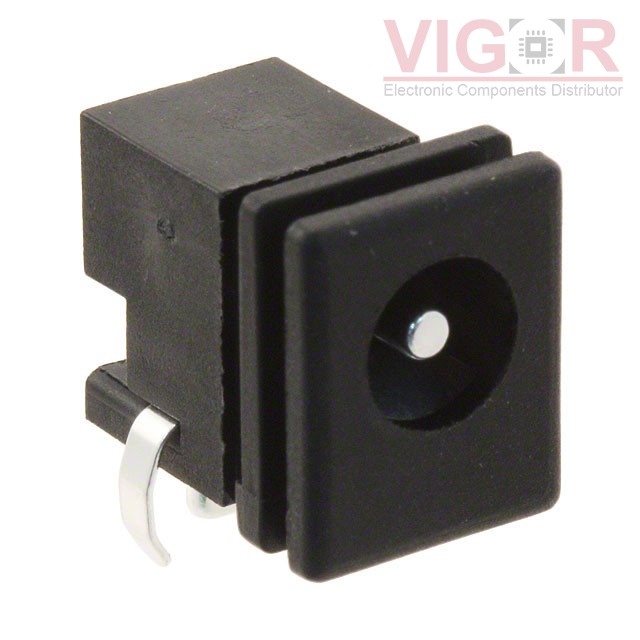

PJ1-021

Part No :: PJ1-021

Manufacturer: CUI Devices

VIGOR # :: 3279825

Description: CONN POWER JACK 1.75X4.75MM

Catalog: Barrel - Power Connectors

DataSheet: PJ1-021 PDF

Country of origin: -

Date code: -

PJ1-021 Specifications

Type	Description
Series:	-
Package:	Bag
Part Status:	Active
Connector Type:	Jack
Gender:	Male
Industry Recognized Mating Diameter:	1.75mm ID (0.068"), 4.75mm OD (0.187")
Actual Diameter:	0.065" (1.65mm ID), 0.203" (5.15mm OD)
Number of Positions/Contacts:	2 Conductors, 3 Contacts
Internal Switch(s):	Single Switch, Normally Closed
Mounting Type:	Through Hole, Right Angle
Mounting Feature:	-
Termination:	Kinked Pin
Shielding:	Unshielded
Features:	Board Guide
Insulation Color:	-
Voltage - Rated:	24VDC
Current Rating (Amps):	5 A
Mating Length/Depth:	0.335" (8.50mm)
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1130

Shipped from

HK warehouse

Expected Shipping Date

Jan 03 - Jan 07 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.79~~	~~$0.79~~
10	~~$0.70~~	~~$7.03~~
25	~~$0.66~~	~~$16.58~~
50	~~$0.64~~	~~$31.87~~
100	~~$0.61~~	~~$61.13~~
250	~~$0.56~~	~~$139.82~~
500	~~$0.51~~	~~$253.62~~
1000	~~$0.46~~	~~$455.21~~
2500	~~$0.42~~	~~$1 040.50~~

Current price of PJ1-021 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

54-00141

CONN JACK R/A PCB 3.5X1.35MM

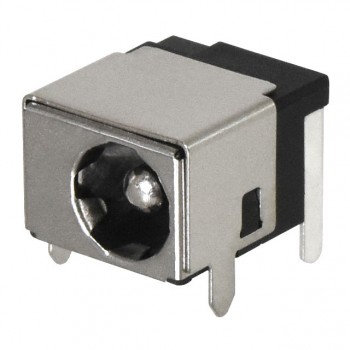

PJ-079BH

PWR JACK 2.5X5.8MM HORIZONTAL TH

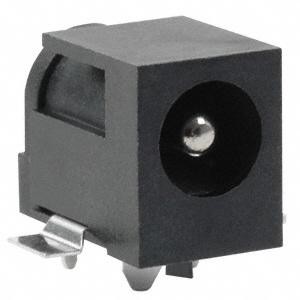

PJ-037BH-SMT-TR
