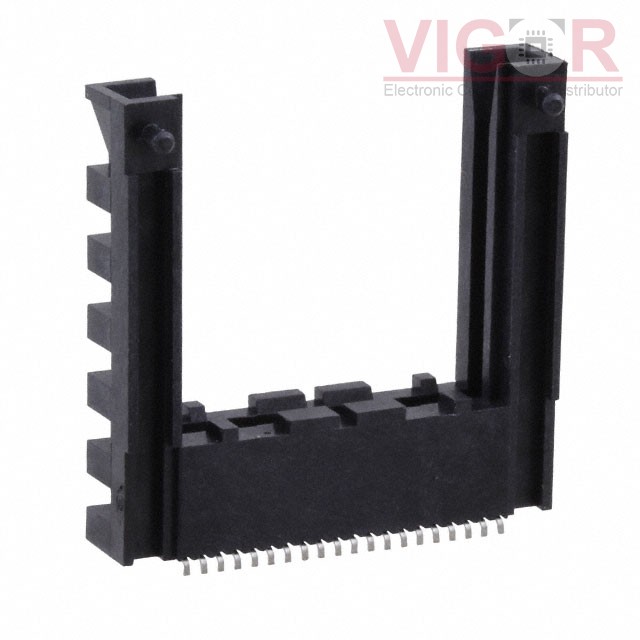

MB1-120-01-F-S-02-SL

Part No :: MB1-120-01-F-S-02-SL

Manufacturer: Samtec, Inc.

Description: CONN EDGE SGL FMALE 20POS 0.039

Catalog: Card Edge Connectors - Edgeboard Connectors

DataSheet: MB1-120-01-F-S-02-SL PDF

Availability: 260 pieces

Current price of MB1-120-01-F-S-02-SL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MB1-120-01-F-S-02-SL Specifications

Type	Description
Series:	MB1
Package:	Tube
Part Status:	Active
Card Type:	Non Specified - Single Edge
Gender:	Female
Number of Positions/Bay/Row:	-
Number of Positions:	20
Card Thickness:	0.062" (1.57mm)
Number of Rows:	1
Pitch:	0.039" (1.00mm)
Read Out:	Single
Features:	Board Guide, Card Guide
Mounting Type:	Surface Mount, Right Angle
Termination:	Solder
Contact Material:	Beryllium Copper
Contact Finish:	Gold
Contact Finish Thickness:	Flash
Contact Type:	Loop Bellows
Color:	Black
Flange Feature:	-
Operating Temperature:	-55°C ~ 125°C
