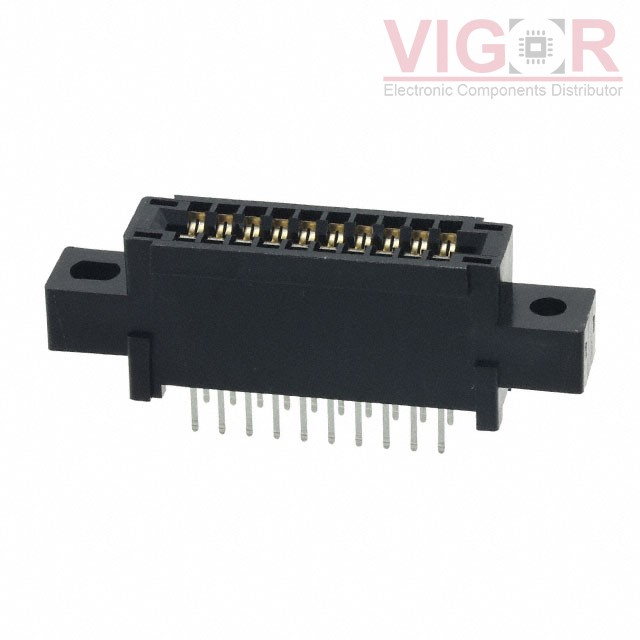

CR22-20D-2.54DS(70)

Part No :: CR22-20D-2.54DS(70)

Manufacturer: Hirose

Description: CONN EDGE DUAL FMALE 20POS 0.100

Catalog: Card Edge Connectors - Edgeboard Connectors

DataSheet: CR22-20D-2.54DS(70) PDF

Availability: 0 pieces

Current price of CR22-20D-2.54DS(70) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CR22-20D-2.54DS(70) Specifications

Type	Description
Series:	CR22
Package:	Tray
Part Status:	Active
Card Type:	Non Specified - Dual Edge
Gender:	Female
Number of Positions/Bay/Row:	-
Number of Positions:	20
Card Thickness:	0.063" (1.60mm)
Number of Rows:	2
Pitch:	0.100" (2.54mm)
Read Out:	Dual
Features:	-
Mounting Type:	Through Hole
Termination:	Solder
Contact Material:	Copper Alloy
Contact Finish:	Gold
Contact Finish Thickness:	-
Contact Type:	-
Color:	Black
Flange Feature:	Top Mount Opening, Unthreaded, 0.128" (3.30mm) Dia
Operating Temperature:	-30°C ~ 85°C
