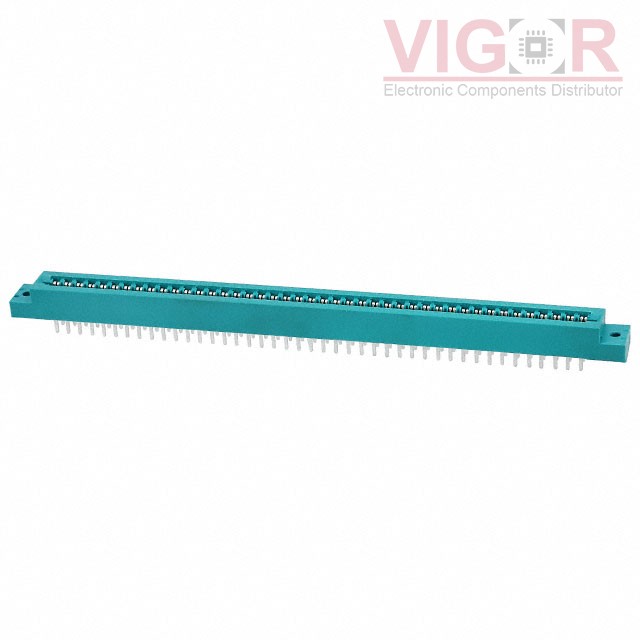

307-086-500-202

Part No :: 307-086-500-202

Manufacturer: EDAC Inc.

Description: CONN EDGE DUAL FMALE 86POS 0.156

Catalog: Card Edge Connectors - Edgeboard Connectors

DataSheet: 307-086-500-202 PDF

Availability: 0 pieces

Current price of 307-086-500-202 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

307-086-500-202 Specifications

Type	Description
Series:	307
Package:	Bulk
Part Status:	Active
Card Type:	Non Specified - Dual Edge
Gender:	Female
Number of Positions/Bay/Row:	43
Number of Positions:	86
Card Thickness:	0.062" (1.57mm)
Number of Rows:	2
Pitch:	0.156" (3.96mm)
Read Out:	Dual
Features:	-
Mounting Type:	Panel Mount
Termination:	Solder Eyelet(s)
Contact Material:	Copper, Nickel, Tin Alloy
Contact Finish:	Gold
Contact Finish Thickness:	-
Contact Type:	-
Color:	Green
Flange Feature:	Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Operating Temperature:	-40°C ~ 105°C
