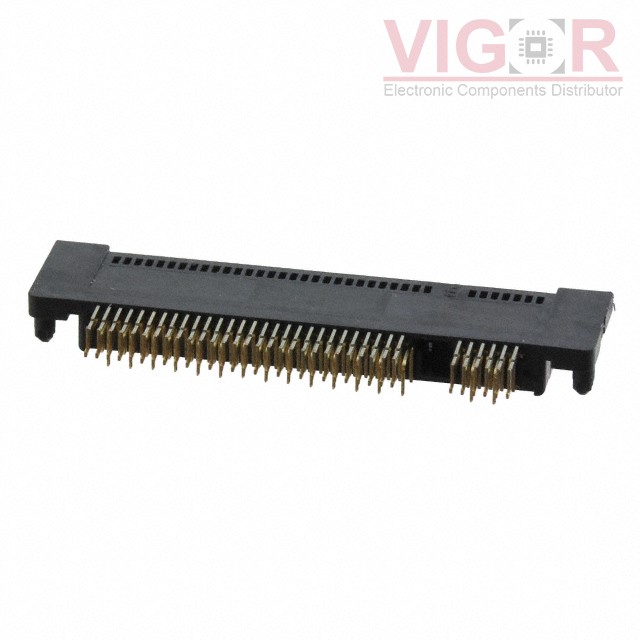

SM3ZS067B120AB2R1500

Part No :: SM3ZS067B120AB2R1500

Manufacturer: JAE Electronics

Description: CONN EDGE DUAL FMALE 67POS 0.020

Catalog: Card Edge Connectors - Edgeboard Connectors

DataSheet: SM3ZS067B120AB2R1500 PDF

Availability: 597 pieces

Current price of SM3ZS067B120AB2R1500 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SM3ZS067B120AB2R1500 Specifications

Type	Description
Series:	SM3
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Card Type:	M.2 (NGFF) Mini Card
Gender:	Female
Number of Positions/Bay/Row:	-
Number of Positions:	67
Card Thickness:	0.031" (0.79mm)
Number of Rows:	2
Pitch:	0.020" (0.50mm)
Read Out:	Dual
Features:	Board Guide
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Contact Material:	Copper Alloy
Contact Finish:	Gold
Contact Finish Thickness:	5.11µin (0.130µm)
Contact Type:	-
Color:	-
Flange Feature:	-
Operating Temperature:	-40°C ~ 80°C
