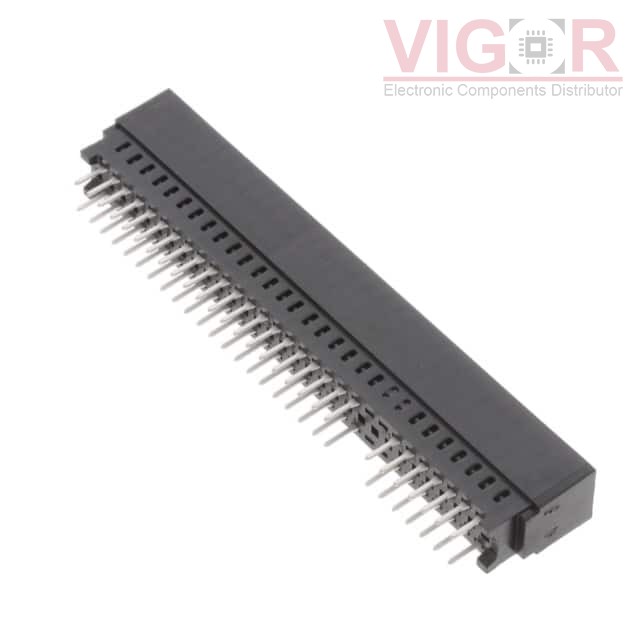

6489170-1

Part No :: 6489170-1

Manufacturer: TE Connectivity AMP Connectors

Description: CONN EDGE DUAL FMALE 60POS 0.100

Catalog: Card Edge Connectors - Edgeboard Connectors

DataSheet: 6489170-1 PDF

Availability: 109 pieces

Unit Price: ~~$3.30000~~

Current price of 6489170-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

6489170-1 Specifications

Type	Description
Series:	Standard Edge II
Package:	Tray
Part Status:	Active
Card Type:	Non Specified - Dual Edge
Gender:	Female
Number of Positions/Bay/Row:	-
Number of Positions:	60 (56 Loaded)
Card Thickness:	0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows:	2
Pitch:	0.100" (2.54mm)
Read Out:	Dual
Features:	-
Mounting Type:	Through Hole
Termination:	Solder
Contact Material:	Phosphor Bronze
Contact Finish:	Gold
Contact Finish Thickness:	30.0µin (0.76µm)
Contact Type:	-
Color:	Black
Flange Feature:	-
Operating Temperature:	-55°C ~ 85°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 109

Shipped from

HK warehouse

Expected Shipping Date

Nov 21 - Nov 25 2025

Enter Quantity

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	$3.30000	$3.3
24	$3.18273	$76.38552
48	$2.93826	$141.03648
72	$2.81578	$202.73616
120	$2.69331	$323.1972
264	$2.38728	$630.24192
504	$2.32606	$1172.33424
1008	$2.02002	$2036.18016
2520	$1.89759	$4781.9268

Hot Products

395-056-524-801

CONN EDGE DUAL FMALE 56POS 0.100

EBM22MMAD

CONN CARDEDGE MALE 44POS 0.156

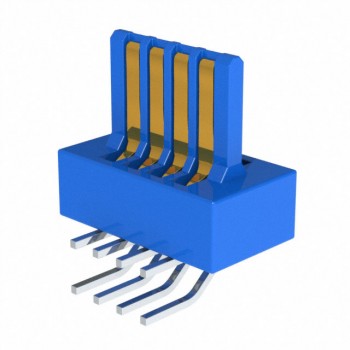

ECC04MMAN
