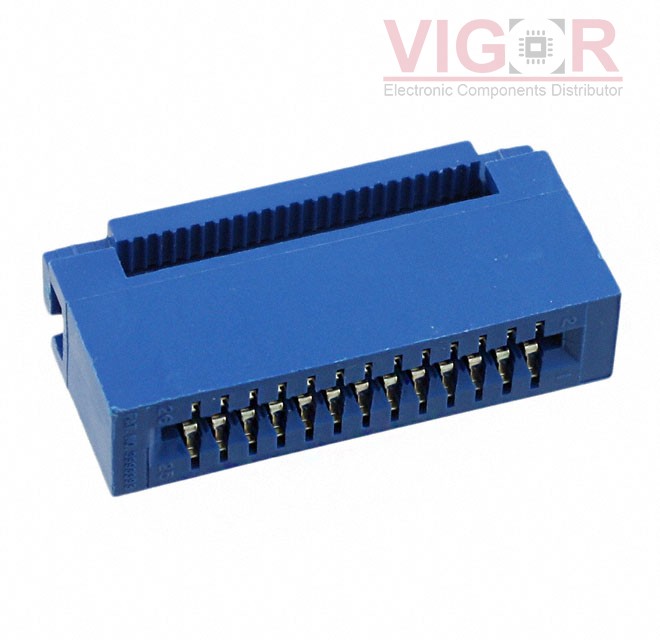

CWR-170-26-0203

Part No :: CWR-170-26-0203

Manufacturer: CW Industries

Description: CONN EDGE DUAL FMALE 26POS 0.100

Catalog: Card Edge Connectors - Edgeboard Connectors

DataSheet: CWR-170-26-0203 PDF

Availability: 590 pieces

Unit Price: ~~$4.23000~~

Current price of CWR-170-26-0203 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CWR-170-26-0203 Specifications

Type	Description
Series:	170
Package:	Bulk
Part Status:	Active
Card Type:	Non Specified - Dual Edge
Gender:	Female
Number of Positions/Bay/Row:	13
Number of Positions:	26
Card Thickness:	0.032" ~ 0.070" (0.81mm ~ 1.78mm)
Number of Rows:	2
Pitch:	0.100" (2.54mm)
Read Out:	Dual
Features:	-
Mounting Type:	Free Hanging (In-Line)
Termination:	IDC
Contact Material:	Phosphor Bronze
Contact Finish:	Tin
Contact Finish Thickness:	100.0µin (2.54µm)
Contact Type:	Cantilever
Color:	Blue
Flange Feature:	-
Operating Temperature:	-55°C ~ 125°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 590

Shipped from

HK warehouse

Expected Shipping Date

Nov 20 - Nov 24 2025

Enter Quantity

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	$4.23000	$4.23
10	$4.05528	$40.5528
25	$3.71734	$92.9335
50	$3.54837	$177.4185
100	$3.37940	$337.94
250	$2.95700	$739.25
500	$2.87249	$1436.245
1000	$2.45007	$2450.07
2500	$2.28110	$5702.75
