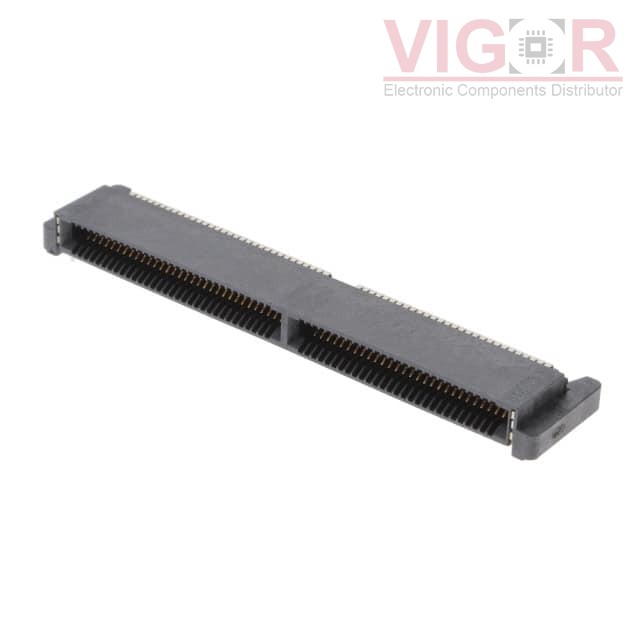

HSEC8-160-01-S-RA-TR

Part No :: HSEC8-160-01-S-RA-TR

Manufacturer: Samtec, Inc.

Description: CONN EDGE DUAL FMALE 120P 0.031

Catalog: Card Edge Connectors - Edgeboard Connectors

DataSheet: HSEC8-160-01-S-RA-TR PDF

Availability: 319 pieces

Unit Price: ~~$12.56000~~

Current price of HSEC8-160-01-S-RA-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

HSEC8-160-01-S-RA-TR Specifications

Type	Description
Series:	Edge Rate™ HSEC8
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Card Type:	Non Specified - Dual Edge
Gender:	Female
Number of Positions/Bay/Row:	60
Number of Positions:	120
Card Thickness:	0.062" (1.57mm)
Number of Rows:	2
Pitch:	0.031" (0.80mm)
Read Out:	Dual
Features:	-
Mounting Type:	Surface Mount, Right Angle
Termination:	Solder
Contact Material:	Beryllium Copper
Contact Finish:	Gold
Contact Finish Thickness:	30.0µin (0.76µm)
Contact Type:	Cantilever
Color:	Black
Flange Feature:	-
Operating Temperature:	-55°C ~ 125°C
