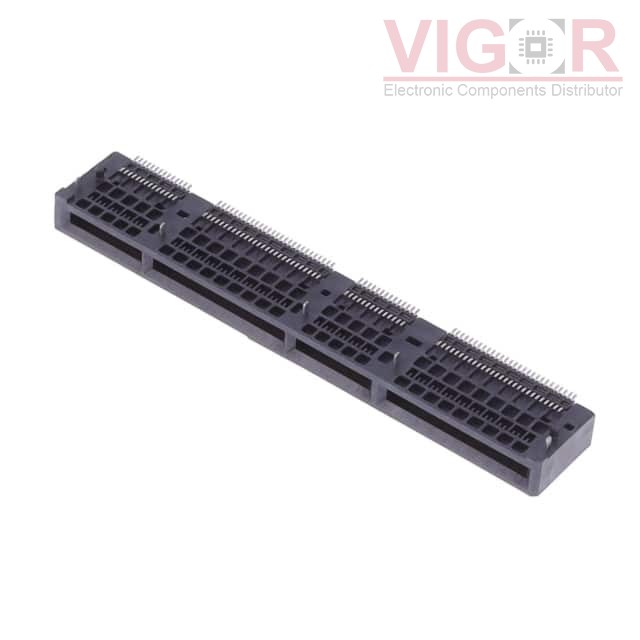

2336568-1

Part No :: 2336568-1

Manufacturer

VIGOR # :: 2999633

Description: RECEPT ASSY RA 168 POS SLIVER 2.

Catalog: Card Edge Connectors - Edgeboard Connectors

DataSheet: 2336568-1 PDF

Country of origin: -

Date code: -

2336568-1 Specifications

Type	Description
Series:	Sliver 2.0
Package:	Tray
Part Status:	Active
Card Type:	Non Specified - Dual Edge
Gender:	Female
Number of Positions/Bay/Row:	28; 14; 28; 14
Number of Positions:	168
Card Thickness:	0.062" (1.57mm)
Number of Rows:	2
Pitch:	0.024" (0.60mm)
Read Out:	Dual
Features:	Board Guide, Pick and Place, Solder Retention
Mounting Type:	Surface Mount, Right Angle
Termination:	Solder
Contact Material:	Copper Alloy
Contact Finish:	Gold-Palladium
Contact Finish Thickness:	3.00µin (0.076µm)
Contact Type:	-
Color:	Black
Flange Feature:	-
Operating Temperature:	-55°C ~ 85°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1619

Shipped from

HK warehouse

Expected Shipping Date

Apr 13 - Apr 17 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$14.8400~~	~~$14.84~~

Current price of 2336568-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

EBA50DCSD

CONN EDGE DUAL FMALE 100POS .125

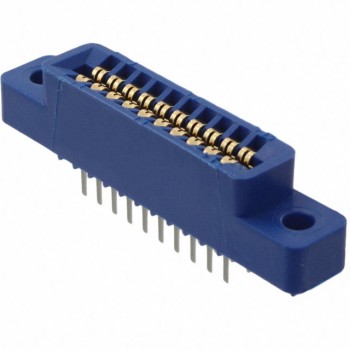

EBC10DRTH
