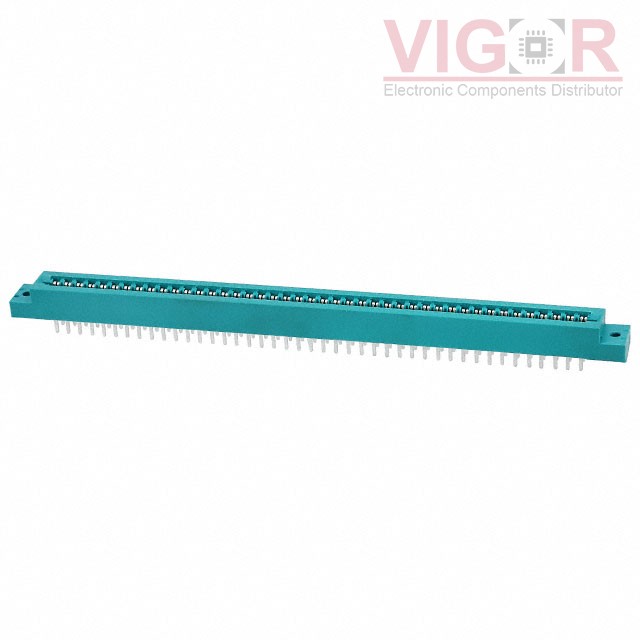

307-086-520-202

Part No :: 307-086-520-202

Manufacturer: EDAC Inc.

VIGOR # :: 3000427

Description: CONN EDGE DUAL FMALE 86POS 0.156

Catalog: Card Edge Connectors - Edgeboard Connectors

DataSheet: 307-086-520-202 PDF

Country of origin: -

Date code: -

307-086-520-202 Specifications

Type	Description
Series:	307
Package:	Bulk
Part Status:	Active
Card Type:	Non Specified - Dual Edge
Gender:	Female
Number of Positions/Bay/Row:	43
Number of Positions:	86
Card Thickness:	0.062" (1.57mm)
Number of Rows:	2
Pitch:	0.156" (3.96mm)
Read Out:	Dual
Features:	-
Mounting Type:	Through Hole
Termination:	Solder
Contact Material:	Copper, Nickel, Tin Alloy
Contact Finish:	Gold
Contact Finish Thickness:	-
Contact Type:	-
Color:	Green
Flange Feature:	Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Operating Temperature:	-40°C ~ 105°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Apr 13 - Apr 17 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$16.5440~~	~~$16.54~~
10	~~$15.8264~~	~~$158.26~~
25	~~$14.3876~~	~~$359.69~~
50	~~$13.6682~~	~~$683.41~~
100	~~$13.3086~~	~~$1 330.86~~
250	~~$11.8698~~	~~$2 967.46~~
500	~~$11.1504~~	~~$5 575.21~~
1000	~~$9.8555~~	~~$9 855.53~~

Current price of 307-086-520-202 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

307-086-520-204

CONN EDGE DUAL FMALE 86POS 0.156

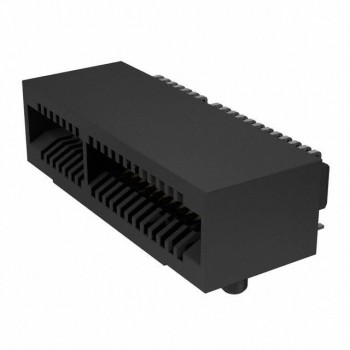

MEC1-120-02-L-D-RA1-SL

CONN EDGE DUAL FMALE 40POS 0.039

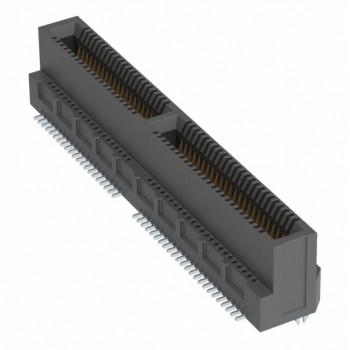

MEC8-145-02-L-DV-LC
