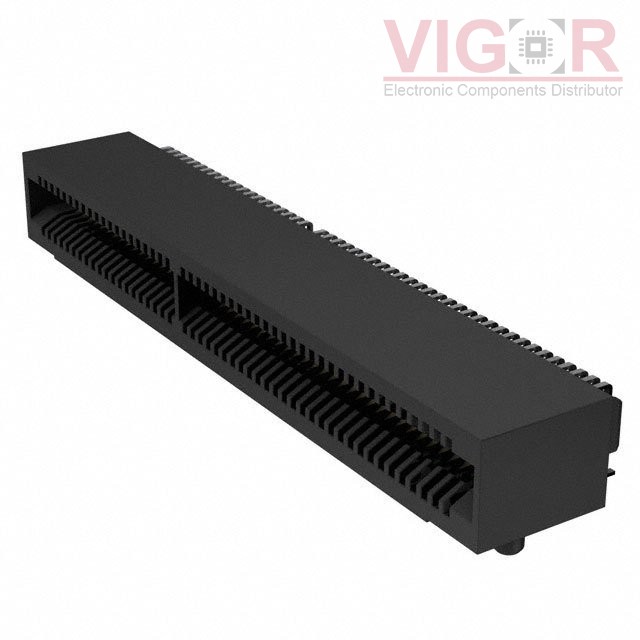

MEC1-150-02-F-D-RA1-SL

Part No :: MEC1-150-02-F-D-RA1-SL

Manufacturer: Samtec, Inc.

VIGOR # :: 3000833

Description: CONN EDGE DUAL FMALE 100P 0.039

Catalog: Card Edge Connectors - Edgeboard Connectors

DataSheet: MEC1-150-02-F-D-RA1-SL PDF

Current price of MEC1-150-02-F-D-RA1-SL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MEC1-150-02-F-D-RA1-SL Specifications

Type	Description
Series:	MEC1
Package:	Tube
Part Status:	Active
Card Type:	Non Specified - Dual Edge
Gender:	Female
Number of Positions/Bay/Row:	-
Number of Positions:	100
Card Thickness:	0.062" (1.57mm)
Number of Rows:	2
Pitch:	0.039" (1.00mm)
Read Out:	Dual
Features:	Board Lock
Mounting Type:	Surface Mount, Right Angle
Termination:	Solder
Contact Material:	Phosphor Bronze
Contact Finish:	Gold
Contact Finish Thickness:	3.00µin (0.076µm)
Contact Type:	Loop Bellows
Color:	Black
Flange Feature:	-
Operating Temperature:	-55°C ~ 125°C
