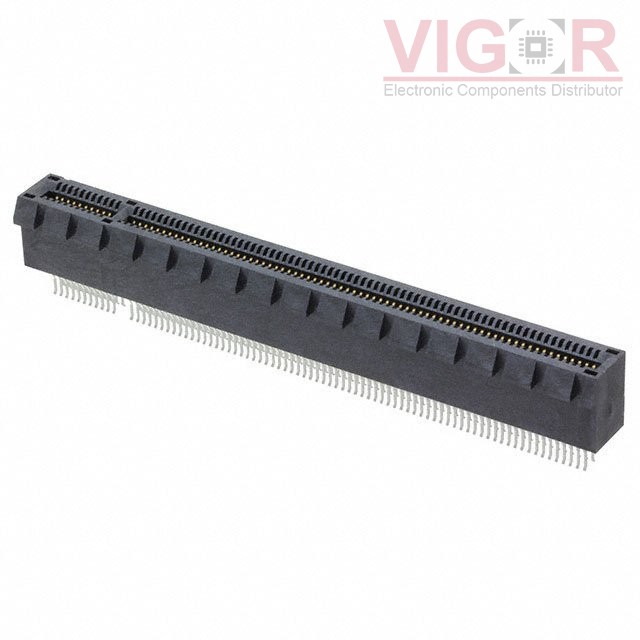

PCIE-164-02-F-D-EMS2

Part No :: PCIE-164-02-F-D-EMS2

Manufacturer: Samtec, Inc.

VIGOR # :: 3000926

Description: CONN PCI EXP FMALE 164POS 0.039

Catalog: Card Edge Connectors - Edgeboard Connectors

DataSheet: PCIE-164-02-F-D-EMS2 PDF

Country of origin: -

Date code: -

PCIE-164-02-F-D-EMS2 Specifications

Type	Description
Series:	PCI Express® (PCIe)
Package:	Tube
Part Status:	Active
Card Type:	PCI Express™
Gender:	Female
Number of Positions/Bay/Row:	-
Number of Positions:	164
Card Thickness:	0.062" (1.57mm)
Number of Rows:	2
Pitch:	0.039" (1.00mm)
Read Out:	Dual
Features:	Locking Ramp
Mounting Type:	Board Edge, Straddle Mount
Termination:	Solder
Contact Material:	Phosphor Bronze
Contact Finish:	Gold
Contact Finish Thickness:	3.00µin (0.076µm)
Contact Type:	-
Color:	Black
Flange Feature:	-
Operating Temperature:	-55°C ~ 125°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 264

Shipped from

HK warehouse

Expected Shipping Date

Apr 13 - Apr 17 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$10.0700~~	~~$10.07~~
12	~~$9.6322~~	~~$115.59~~
30	~~$8.7565~~	~~$262.70~~
54	~~$8.3187~~	~~$449.21~~
102	~~$8.0998~~	~~$826.18~~
252	~~$7.2241~~	~~$1 820.48~~
504	~~$6.7863~~	~~$3 420.30~~
1002	~~$5.9982~~	~~$6 010.22~~

Current price of PCIE-164-02-F-D-EMS2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
