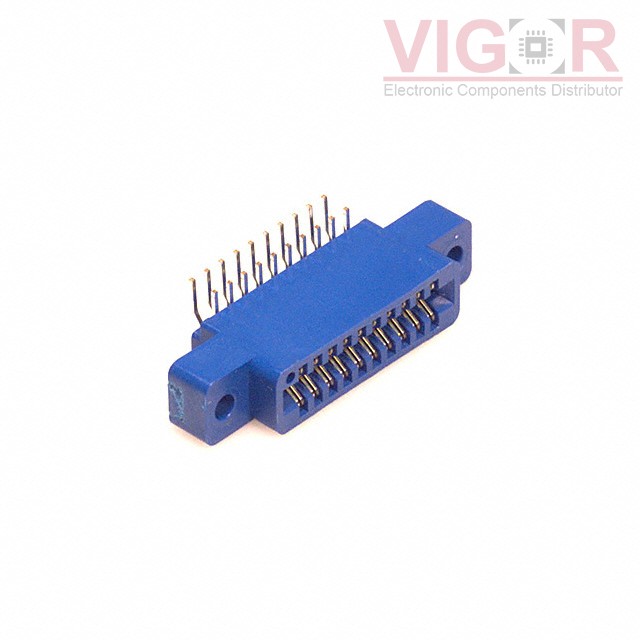

EZC10DCAH

Part No :: EZC10DCAH

Manufacturer: Sullins Connector Solutions

VIGOR # :: 4622264

Description: CONN EDGE DUAL FMALE 20POS 0.100

Catalog: Card Edge Connectors - Edgeboard Connectors

DataSheet: EZC10DCAH PDF

Current price of EZC10DCAH is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

EZC10DCAH Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Obsolete
Card Type:	Non Specified - Dual Edge
Gender:	Female
Number of Positions/Bay/Row:	10
Number of Positions:	20
Card Thickness:	0.062" (1.57mm)
Number of Rows:	2
Pitch:	0.100" (2.54mm)
Read Out:	Dual
Features:	-
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Contact Material:	Phosphor Bronze
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)
Contact Type:	Hairpin Bellows
Color:	Blue
Flange Feature:	Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia
Operating Temperature:	-65°C ~ 125°C
