0758000001

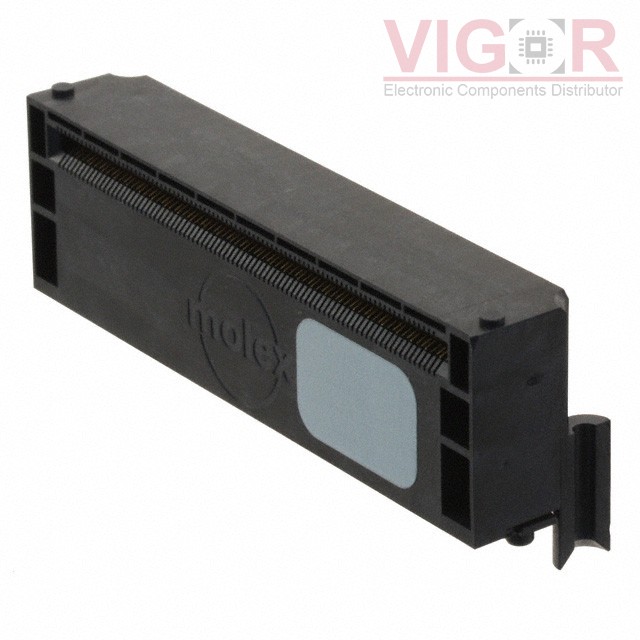

Image is for reference,
please contact us to get the real picture

Part No :

0758000001

Manufacturer
Woodhead - Molex
Description
CONN AMC B+ FEMALE 170POS 0.030
Catalog
Card Edge Connectors - Edgeboard Connectors
Shipped from
HK warehouse
Expected Shipping Date
Oct 17 - Oct 21 2025
DataSheet
0758000001 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of 0758000001 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:75800
Package:Tray
Part Status:Obsolete
Card Type:Advanced Mezzanine Card B+, MicroTCA
Gender:Female
Number of Positions/Bay/Row:85
Number of Positions:170
Card Thickness:0.057" ~ 0.069" (1.44mm ~ 1.76mm)
Number of Rows:2
Pitch:0.030" (0.76mm)
Read Out:Dual
Features:Board Guide
Mounting Type:Through Hole, Right Angle
Termination:Press-Fit
Contact Material:Copper Alloy
Contact Finish:Gold
Contact Finish Thickness:30.0µin (0.76µm)
Contact Type:-
Color:Black
Flange Feature:-
Operating Temperature:-40°C ~ 105°C
