MB5RJN15H01

Part No :: MB5RJN15H01

Manufacturer: Tuchel / Amphenol

VIGOR # :: 3171297

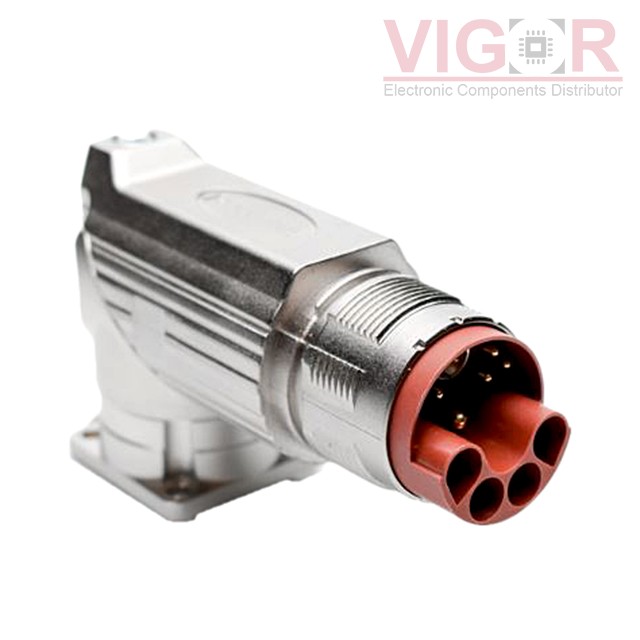

Description: CONN RCPT HSG MALE 12POS PNL RA

Catalog: Circular Connectors - Housings

DataSheet: MB5RJN15H01 PDF

Country of origin: -

Date code: -

MB5RJN15H01 Specifications

Type	Description
Series:	MotionGrade™ M23 Hybrid Series, Checkmate™ Quick Locking
Package:	Bulk
Part Status:	Active
Connector Type:	Receptacle Housing
Type:	For Male Pins
Number of Positions:	12 (6 + 4 Power + 1 Quadrax + PE)
Shell Size - Insert:	M23-12
Shell Size, MIL:	-
Contact Type:	Crimp
Contact Size:	1.0mm (6), 2.0mm Power (5), 0.6mm Quadrax (1)
Mounting Type:	Panel Mount, Right Angle
Mounting Feature:	Flange
Fastening Type:	Push-Twist
Orientation:	Keyed
Shell Material:	Zinc Die Cast
Shell Finish:	Nickel
Housing Color:	Silver
Ingress Protection:	IP67 - Dust Tight, Waterproof
Material Flammability Rating:	UL94 V-0
Features:	Backshell
Shielding:	Shielded
