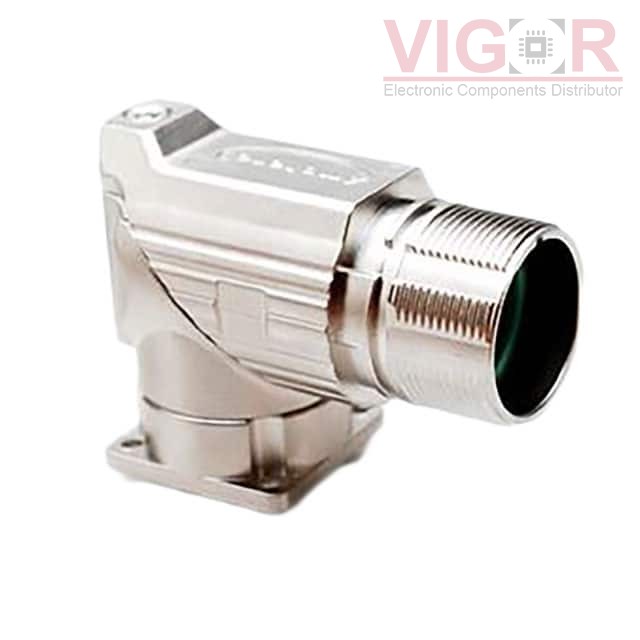

MA7RAE1601

Part No :: MA7RAE1601

Manufacturer: Tuchel / Amphenol

Description: CONN RCPT HSG F/M 16P PNL MT RA

Catalog: Circular Connectors - Housings

DataSheet: MA7RAE1601 PDF

Availability: 0 pieces

Current price of MA7RAE1601 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MA7RAE1601 Specifications

Type	Description
Series:	MotionGrade™ Elite M23 Signal Series, Threaded
Package:	Bulk
Part Status:	Active
Connector Type:	Receptacle Housing
Type:	For Female Sockets or Male Pins
Number of Positions:	16
Shell Size - Insert:	M23-16
Shell Size, MIL:	-
Contact Type:	Crimp
Contact Size:	1.0mm
Mounting Type:	Panel Mount, Right Angle
Mounting Feature:	Flange
Fastening Type:	Threaded
Orientation:	N (Normal)
Shell Material:	Zinc Die Cast
Shell Finish:	Nickel
Housing Color:	Silver
Ingress Protection:	IP67 - Dust Tight, Waterproof
Material Flammability Rating:	UL94 V-0
Features:	Backshell, Rotatable
Shielding:	Shielded
