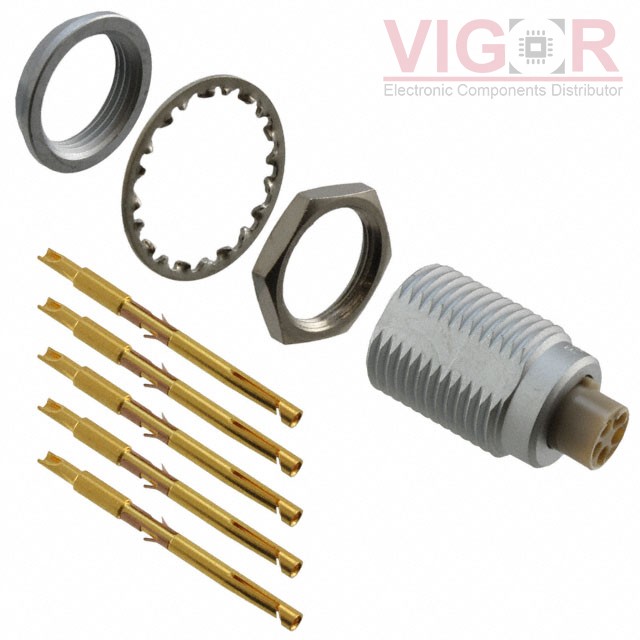

JBXEA1G05FSSDS

Part No :: JBXEA1G05FSSDS

Manufacturer: Souriau-Sunbank by Eaton

VIGOR # :: 3290176

Description: CONN RCPT FMALE 5P GOLD SLDR CUP

Catalog: Circular Connectors

DataSheet: JBXEA1G05FSSDS PDF

Country of origin: -

Date code: -

JBXEA1G05FSSDS Specifications

Type	Description
Series:	JBX
Package:	Bulk
Part Status:	Active
Connector Type:	Receptacle, Female Sockets
Number of Positions:	5
Shell Size - Insert:	1
Shell Size, MIL:	-
Mounting Type:	Panel Mount
Mounting Feature:	Bulkhead - Front or Rear Side Nut
Termination:	Solder Cup
Fastening Type:	Push-Pull
Orientation:	G
Shell Material:	Brass
Shell Finish:	Chrome over Nickel
Contact Finish - Mating:	Gold
Color:	Silver
Ingress Protection:	IP40
Material Flammability Rating:	UL94 V-0
Features:	-
Shielding:	Shielded
Current Rating (Amps):	9A
Voltage Rating:	660V
Cable Opening:	-
Operating Temperature:	-40°C ~ 125°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 14

Shipped from

HK warehouse

Expected Shipping Date

Apr 03 - Apr 07 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$31.9700~~	~~$31.97~~
10	~~$28.8590~~	~~$288.59~~
25	~~$27.6493~~	~~$691.23~~
50	~~$25.9212~~	~~$1 296.06~~
100	~~$25.0572~~	~~$2 505.72~~
250	~~$23.6747~~	~~$5 918.68~~

Current price of JBXEA1G05FSSDS is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
