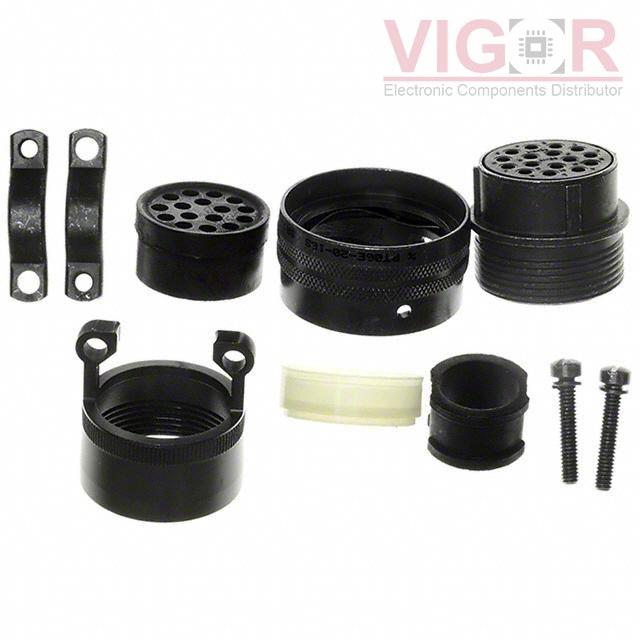

Part No :

PT06E-20-16S(SR)

Manufacturer
Amphenol Industrial
VIGOR # :

3297554

Description
CONN PLUG FMALE 16P SOLDER CUP
Catalog
Circular Connectors
DataSheet
PT06E-20-16S(SR) PDF
Country of origin
Confirming
Date code
TBC
ads
Type Description
Series:MIL-DTL-26482 Series I, PT
Package:Bulk
Part Status:Active
Connector Type:Plug, Female Sockets
Number of Positions:16
Shell Size - Insert:20-16
Shell Size, MIL:-
Mounting Type:Free Hanging (In-Line)
Mounting Feature:-
Termination:Solder Cup
Fastening Type:Bayonet Lock
Orientation:N (Normal)
Shell Material:Aluminum
Shell Finish:Olive Drab Chromate over Cadmium
Contact Finish - Mating:Gold
Color:Olive Drab
Ingress Protection:Environment Sealed
Material Flammability Rating:-
Features:Backshell, Cable Clamp, Coupling Nut
Shielding:Unshielded
Current Rating (Amps):-
Voltage Rating:-
Cable Opening:-
Operating Temperature:-55°C ~ 125°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Shipped from
HK warehouse
Expected Shipping Date
Nov 18 - Nov 22 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $65.6000 $65.60
5 $58.3396 $291.70
10 $56.1892 $561.89
25 $52.6941 $1 317.35
50 $48.9303 $2 446.51
100 $45.4352 $4 543.52

Current price of PT06E-20-16S(SR) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
