05DL5MX

Part No :: 05DL5MX

Manufacturer: Switchcraft / Conxall

VIGOR # :: 3308540

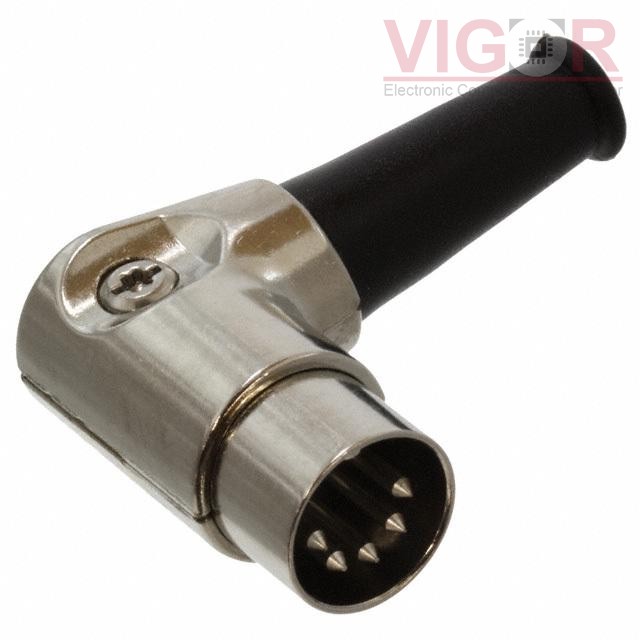

Description: CONN PLUG MALE DIN 5POS SOLDER

Catalog: Circular Connectors

DataSheet: 05DL5MX PDF

Country of origin: -

Date code: -

05DL5MX Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Connector Type:	Plug, Male Pins
Number of Positions:	5
Shell Size - Insert:	DIN (180 Degree)
Shell Size, MIL:	-
Mounting Type:	Free Hanging (In-Line), Right Angle
Mounting Feature:	-
Termination:	Solder
Fastening Type:	Push-Pull
Orientation:	5
Shell Material:	Zinc Die Cast
Shell Finish:	Nickel
Contact Finish - Mating:	Tin
Color:	Silver
Ingress Protection:	-
Material Flammability Rating:	-
Features:	Backshell, Strain Relief
Shielding:	-
Current Rating (Amps):	3A
Voltage Rating:	34VDC
Cable Opening:	-
Operating Temperature:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 19

Shipped from

HK warehouse

Expected Shipping Date

Oct 21 - Oct 25 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$14.8200~~	~~$14.82~~
10	~~$11.5872~~	~~$115.87~~
25	~~$10.3988~~	~~$259.97~~
50	~~$10.1016~~	~~$505.08~~
100	~~$9.6560~~	~~$965.60~~

Current price of 05DL5MX is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
