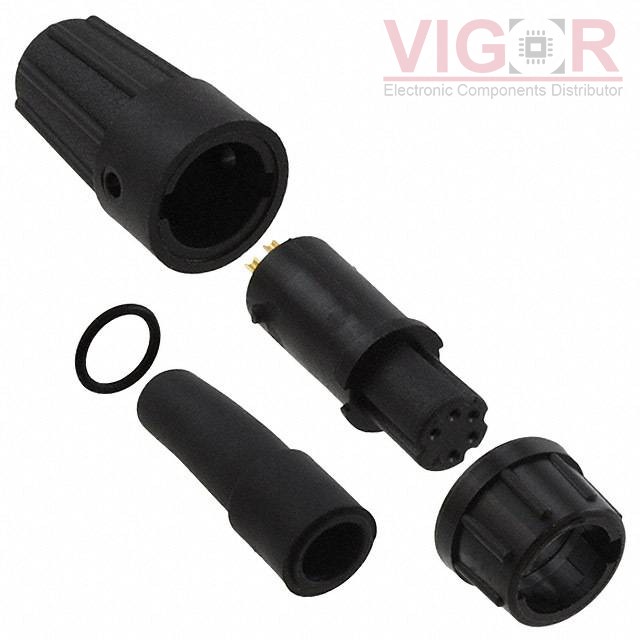

16982-5SG-522

Part No :: 16982-5SG-522

Manufacturer: Switchcraft / Conxall

VIGOR # :: 3313214

Description: CONN PLUG FMALE 5P GOLD SLDR CUP

Catalog: Circular Connectors

DataSheet: 16982-5SG-522 PDF

Country of origin: -

Date code: -

16982-5SG-522 Specifications

Type	Description
Series:	Micro-Con-X®
Package:	Bulk
Part Status:	Active
Connector Type:	Plug, Female Sockets
Number of Positions:	5
Shell Size - Insert:	-
Shell Size, MIL:	-
Mounting Type:	Free Hanging (In-Line)
Mounting Feature:	-
Termination:	Solder Cup
Fastening Type:	Bayonet Lock
Orientation:	B
Shell Material:	Thermoplastic
Shell Finish:	-
Contact Finish - Mating:	Gold
Color:	Black
Ingress Protection:	IP67 - Dust Tight, Waterproof
Material Flammability Rating:	UL94 HB
Features:	Backshell
Shielding:	Unshielded
Current Rating (Amps):	4A
Voltage Rating:	600VAC/DC
Cable Opening:	0.220" ~ 0.230" (5.59mm ~ 5.84mm)
Operating Temperature:	-40°C ~ 85°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 3

Shipped from

HK warehouse

Expected Shipping Date

May 23 - May 27 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$14.8300~~	~~$14.83~~
10	~~$13.4827~~	~~$134.83~~
25	~~$13.1457~~	~~$328.64~~
50	~~$12.1345~~	~~$606.72~~
100	~~$11.4603~~	~~$1 146.03~~
250	~~$10.4491~~	~~$2 612.28~~
500	~~$9.7750~~	~~$4 887.50~~
1000	~~$9.7375~~	~~$9 737.53~~

Current price of 16982-5SG-522 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

AE550LS18-1SW

CONN RCPT FMALE 10POS CRIMP

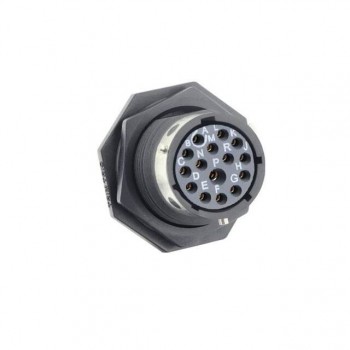

UTGX714D15S

CONN RCPT FMALE 15POS SOLDER

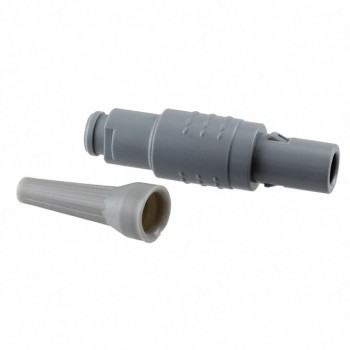

8P1P00417BGL621
