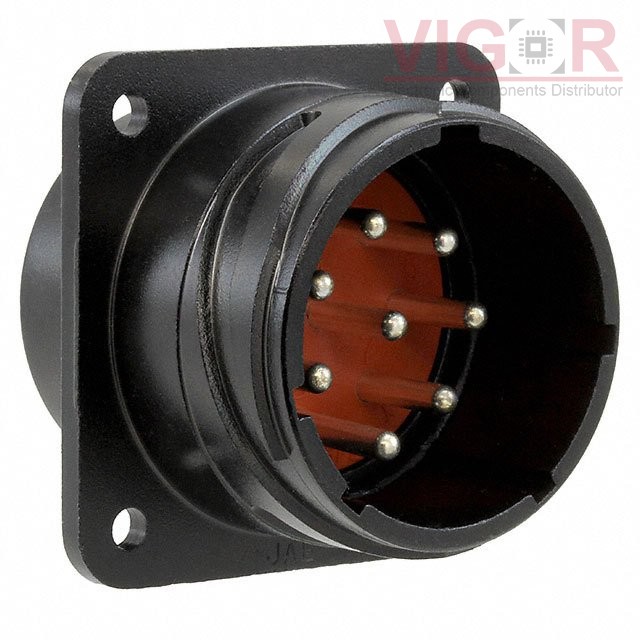

JL05-2L22-23P-R

Part No :: JL05-2L22-23P-R

Manufacturer: JAE Electronics

VIGOR # :: 4715274

Description: CONN RCPT MALE 8P SOLDER CUP

Catalog: Circular Connectors

DataSheet: JL05-2L22-23P-R PDF

Country of origin: -

Date code: -

JL05-2L22-23P-R Specifications

Type	Description
Series:	JL05
Package:	Bulk
Part Status:	Obsolete
Connector Type:	Receptacle, Male Pins
Number of Positions:	8 (7 + PE)
Shell Size - Insert:	22-23
Shell Size, MIL:	-
Mounting Type:	Panel Mount
Mounting Feature:	Flange
Termination:	Solder Cup
Fastening Type:	Bayonet Lock
Orientation:	N (Normal)
Shell Material:	Aluminum Alloy
Shell Finish:	Zinc
Contact Finish - Mating:	Silver
Color:	Black
Ingress Protection:	IP67 - Dust Tight, Waterproof
Material Flammability Rating:	-
Features:	Ground
Shielding:	-
Current Rating (Amps):	23A
Voltage Rating:	-
Cable Opening:	-
Operating Temperature:	-55°C ~ 125°C
