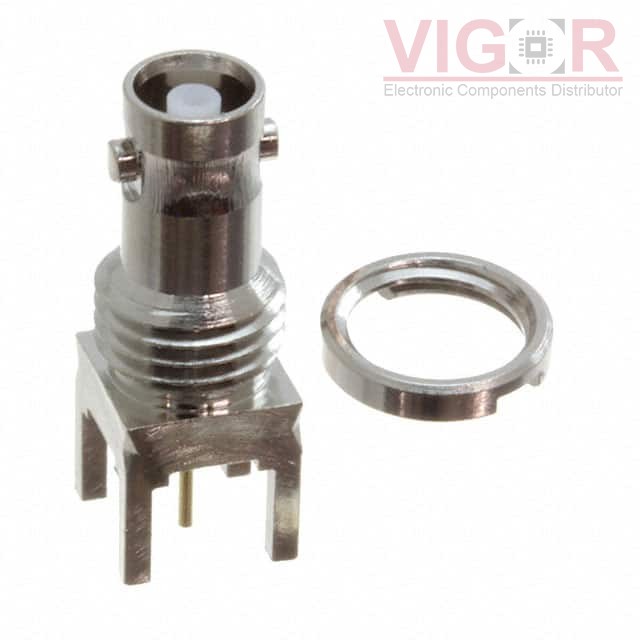

HDBNC-J-P-GN-ST-BH1

Part No :: HDBNC-J-P-GN-ST-BH1

Manufacturer: Samtec, Inc.

VIGOR # :: 3316522

Description: CONN HDBNC JACK STR 75OHM PCB

Catalog: Coaxial Connectors (RF)

DataSheet: HDBNC-J-P-GN-ST-BH1 PDF

Country of origin: -

Date code: -

HDBNC-J-P-GN-ST-BH1 Specifications

Type	Description
Series:	TRUE75™ HDBNC
Package:	Tray
Part Status:	Active
Connector Style:	BNC, HD
Connector Type:	Jack, Female Socket
Contact Termination:	Solder
Shield Termination:	Solder
Impedance:	75Ohm
Mounting Type:	Panel Mount, Through Hole
Mounting Feature:	Bulkhead - Front Side Nut
Cable Group:	-
Fastening Type:	Bayonet Lock
Frequency - Max:	12 GHz
Number of Ports:	1
Features:	12G-SDI
Housing Color:	Silver
Ingress Protection:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 434

Shipped from

HK warehouse

Expected Shipping Date

Apr 06 - Apr 10 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$6.1400~~	~~$6.14~~
10	~~$5.8809~~	~~$58.81~~
25	~~$5.3696~~	~~$134.24~~
50	~~$5.1139~~	~~$255.69~~
100	~~$4.8582~~	~~$485.82~~
250	~~$4.3468~~	~~$1 086.70~~
500	~~$4.0911~~	~~$2 045.55~~
1000	~~$3.5797~~	~~$3 579.70~~

Current price of HDBNC-J-P-GN-ST-BH1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
